Model CF-B

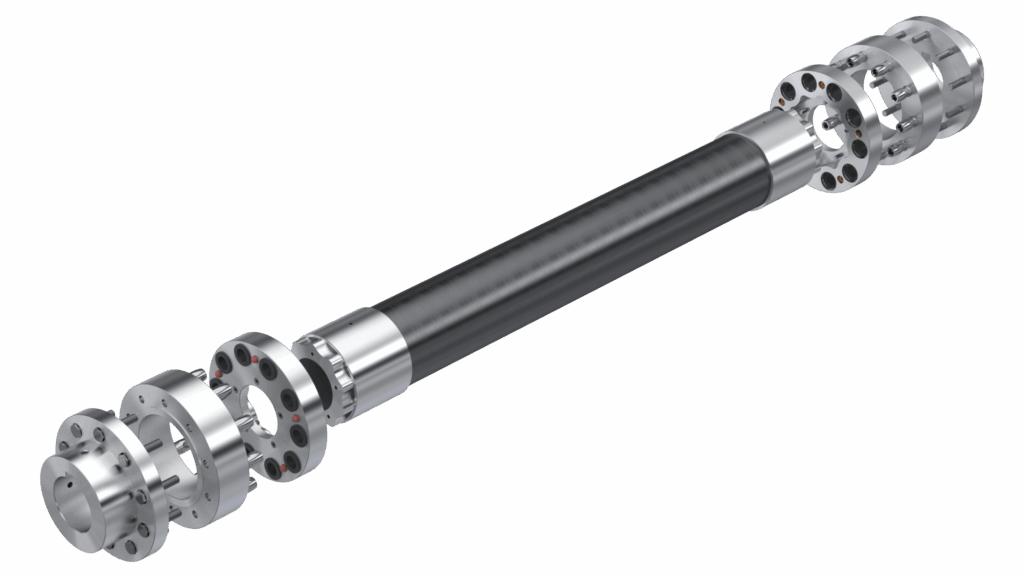

Carbon Fiber Drive Shaft Type B

The Carbon Fiber Drive Shaft Type B utilizes Frontline Pin Adapters that bolt onto existing Rigid Hubs including hubs that bolt onto the carbon fiber tube. This allows for damaged hubs to be quickly replaced in the field.

Request a Quote

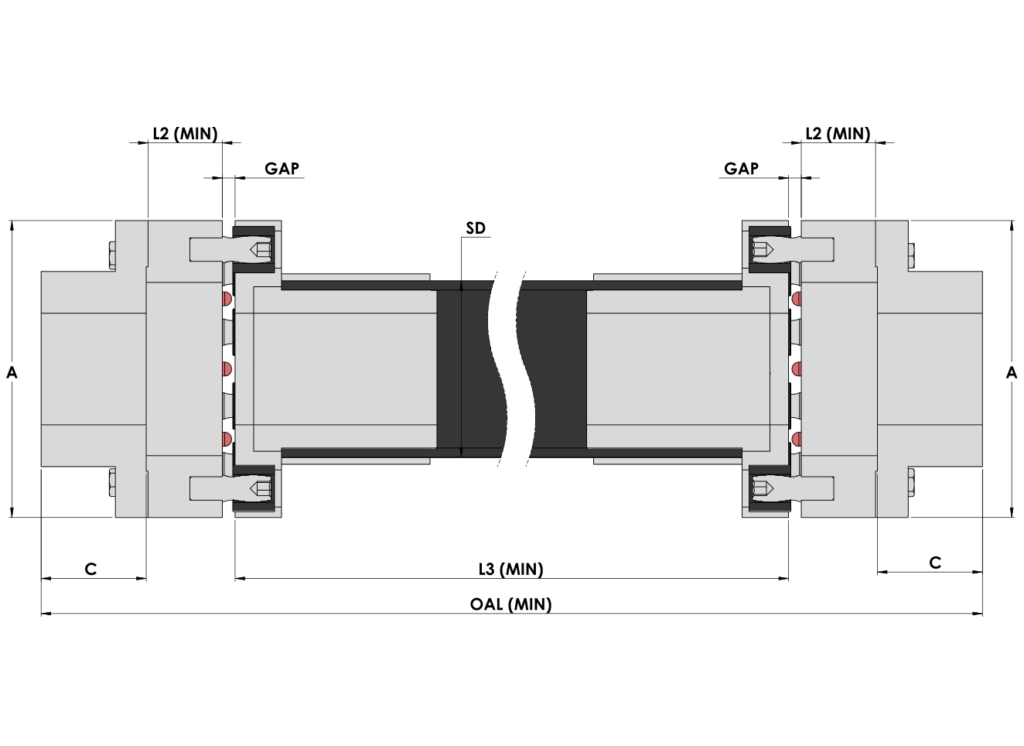

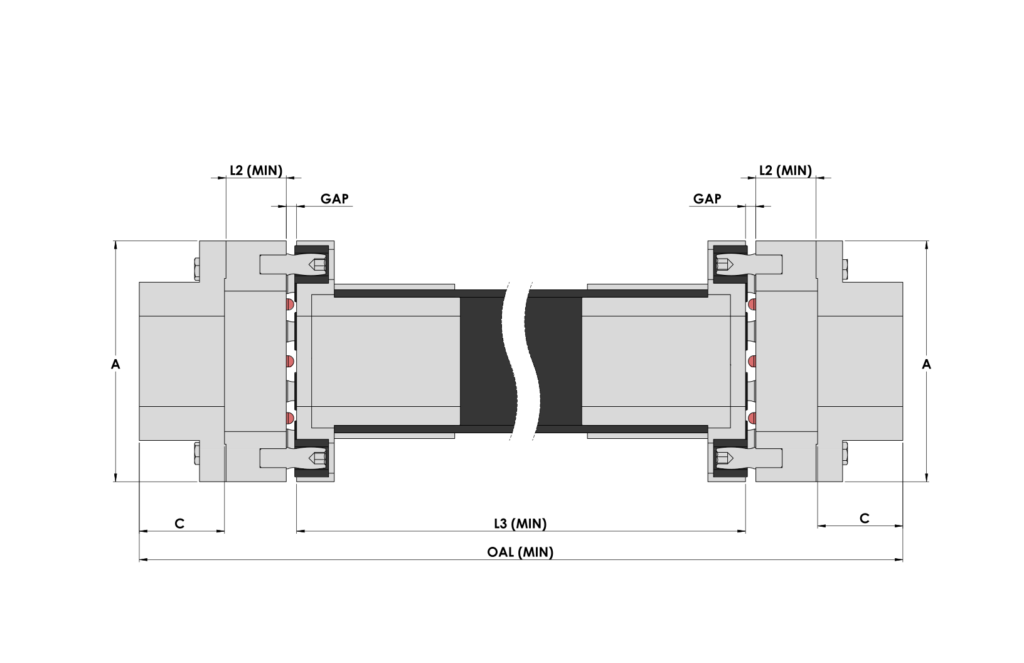

Components of CF-B

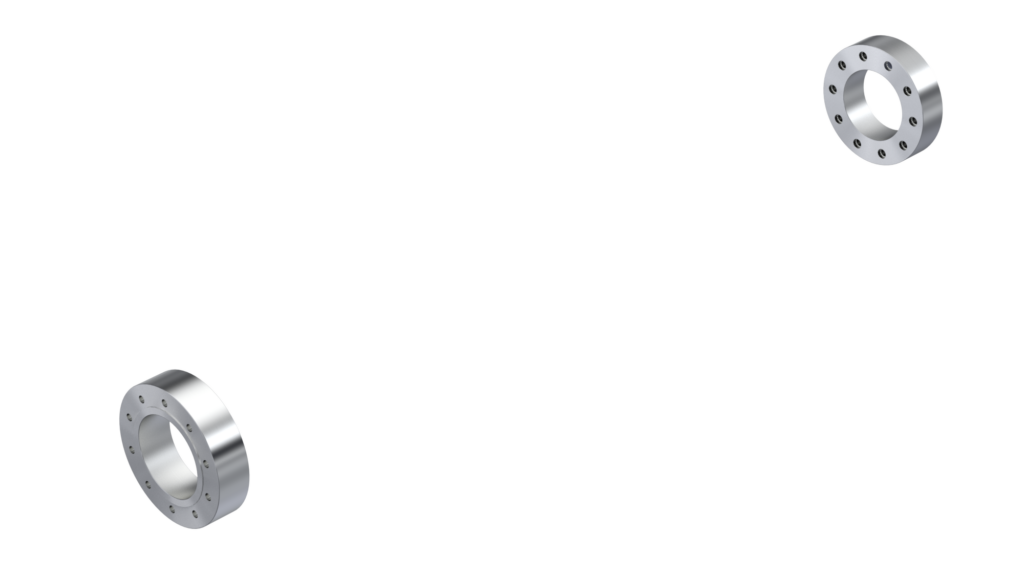

  1. PIN ADAPTERS

    304 SS

  2. BUSHING HUBS

    304 SS

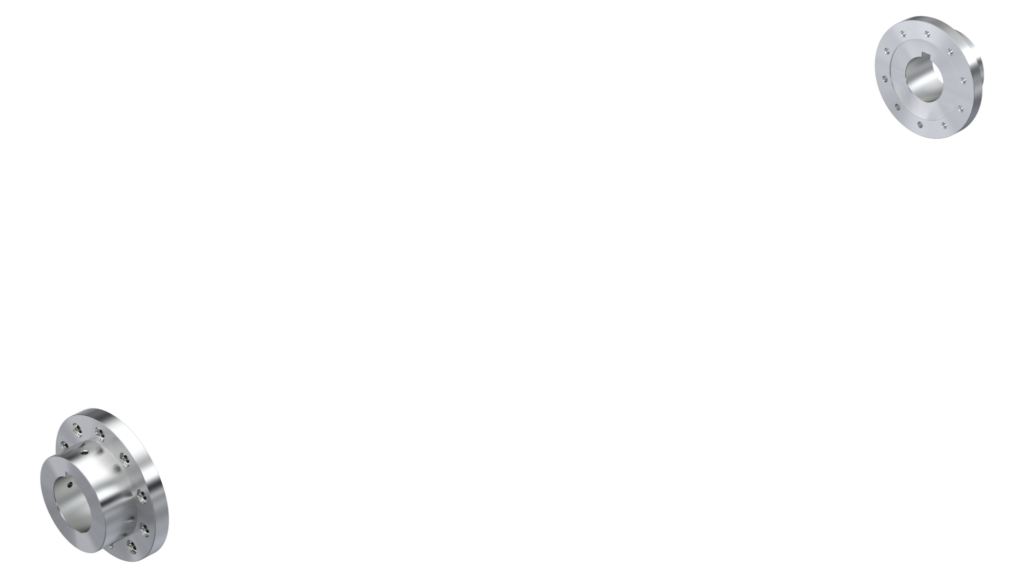

  3. RIGID HUBS

    304 SS

  4. PINS

    17-4 PH Hard Chromed

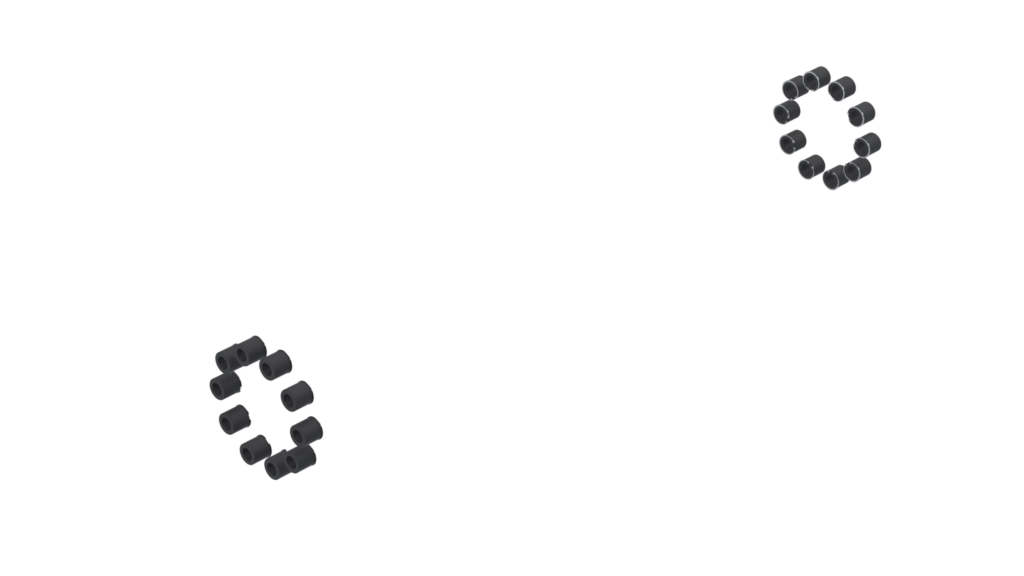

  5. BUSHINGS

    Rubber Coated

  6. HARDWARE

    misc.

  7. SHAFT

    Carbon Fiber & 304 SS

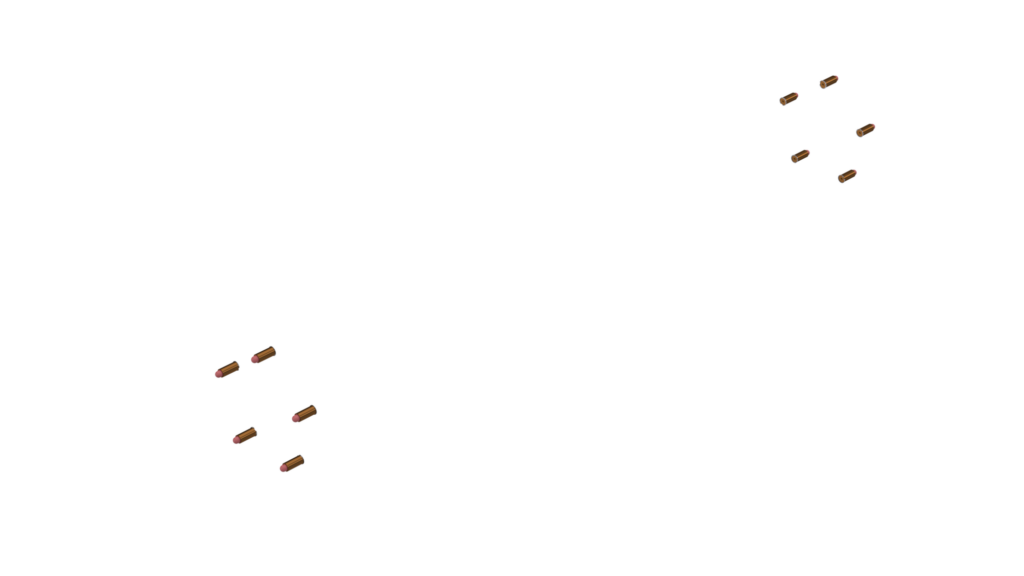

  8. CENTERING STOPS

    Bronze & High Temp. Silicone
Frontline Carbon Fiber Drive Shaft Type B (Model FDS-B) PINS 17-4 PH Hard Chromed

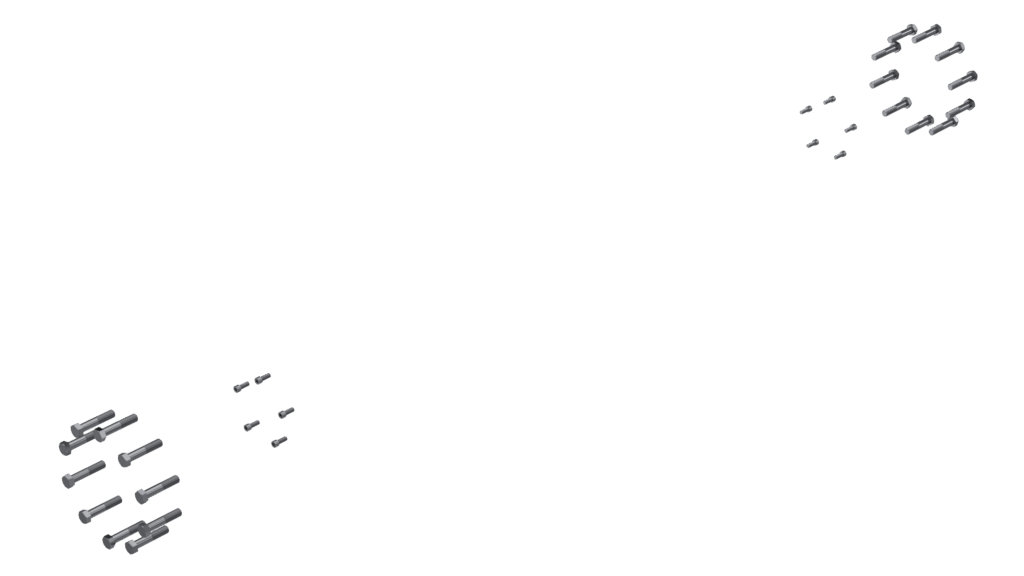

Frontline Carbon Fiber Drive Shaft Type B (Model FDS-B) HARDWARE

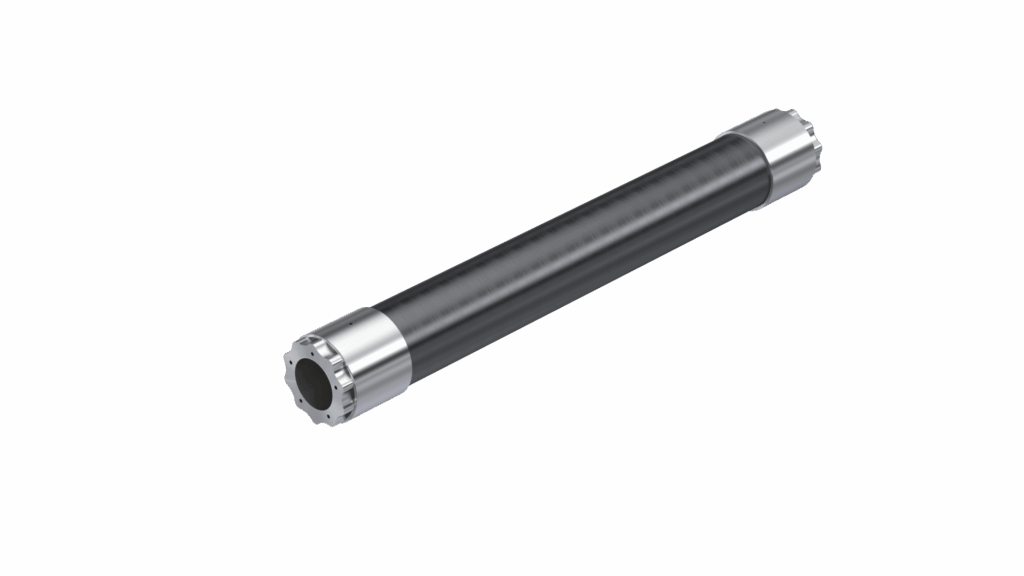

Frontline Carbon Fiber Drive Shaft Type B (Model FDS-B) FLOATING CENTER PIECE

Available Options

Select One to See Detailed Specifications

SERIES RIGID HUB SIZE A (REF) C (REF) L2 (MIN) L3 (MIN) GAP OAL (MIN)
2 1-1/2 6.00 1.94 1.13 24.00 0.375 28.63
2 7.00 2.44 1.13 24.00 0.375 29.63
2-1/2 8.38 3.03 1.13 24.00 0.375 30.81
3 9.44 3.59 1.13 24.00 0.375 31.93
3-1/2 11.00 4.19 1.13 24.00 0.375 33.13
3 4 12.50 4.75 1.50 24.00 0.563 34.63
4-1/2 13.63 5.31 1.50 24.00 0.563 35.75
5 15.31 6.03 1.50 24.00 0.563 37.19
5-1/2 16.75 6.62 1.50 24.00 0.563 38.37
4 6 18.00 7.41 1.75 30.00 0.750 46.32
7 20.75 8.69 1.75 30.00 0.750 48.88



Specify your own custom Couplings Request a Quote

Carbon Fiber Drive Shaft Type B – SeriesFL-A1

  • D2 2.1
  • D3 4.5
  • OAL 4.5
  • s1 1.750
  • s2 2.130
  • s3 4.5
  • s4 4.5
Contact Our Sales Request a Quote

COMMON APPLICATIONS

The Spacer Model is normally used when there is a need to bridge a gap between shaft ends or with End Suction Pumps to facilitate the removal of the “pull out” section without having to move the motor.

  • All types of Fans
  • All types of Jack Shafts
  • Centrifugal Blowers
  • Centrifugal Pumps
  • Compressors
  • Mixers
  • Pulp Grinders
  • Winders
  • Generators
  • Extruders

Model CF-B Ordering Example

For any questions related to sizing and models, please contact Frontline Industries, Inc.

Ordering Example FC CF B 2 04 ST ST
Coupling Line
Model
Model Type
Series
Size
Bushing Type
Pin Type
Notes
  • Only Model SE (Single engagement) Coupling has hubs fitted for both Pins & Bushings. For all other model couplings. Hubs are fitted for Bushings Only.
  • Model FDS (Floating Drive Shaft), Model VPT (Vacuum Pump Train) and Model FLW (Flywheel) are quoted and manufactured on a “per application” basis
  • For tapered bore couplings please see diagram “xyz” and provide dimensions via phone, email or fax.
This Coupling Model has additional Order Examples
View Order Example Options

Component Options

Component Options
Item Description Type
Pin Standard ST
Limited end float LEF
Wire secured WS
Bushing Fiber reinforced polymer compound ST
Fit Option Clearance fit CF
Interference fit IF
Hub Types Hubs fitted for pins Pin
Hubs fitted for bushings Bush
1/4
Bushing A nibh dui id lobortis in id dignissim. Sit facilisis blandit.
2/4
Standard Pin Precision machined barrel shaped pins transmit torque through the coupling and increase misalignment tolerance.
3/4
Wire Secured Pin Wire Secured Pins ensure that if a pin were to disengage due to vibration, it would not potentially harm any equipment or personnel.
4/4
Limited End Float Pin The Limited End Float Pins are used to control the amount of axial float allowed by Electric Motors with sleeve bearings.

Downloadable Resources

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi urna sapien magnis egestas ut vulputate enim. Eu volutpat laoreet in integer ipsum risus.

See All Resources

Advantages

HIGH MISALIGNMENT TOLERANCE

Angular, Axial and Parallel misalignment can be accommodated without transmitting lateral reactionary forces to the equipment.

FAIL-SAFE DESIGN

The Frontline Coupling will never cause a forced outage.

NO LUBRICATION REQUIRED

The only maintenance is sporadic replacement of Pins & Bushings.

EASY TO MAINTAIN

Pins & Bushings can be replaced in a fraction of the time required to maintain a Grid, Gear or Disc Coupling.

Carbon Fiber Drive Shaft Type B

Need consultation in selecting the right couplings?

Contact us for guidance on selecting the best suited Model and Size Coupling for your particular application.

Request a Quote
