Request a QuoteModel DE
Double Engagement

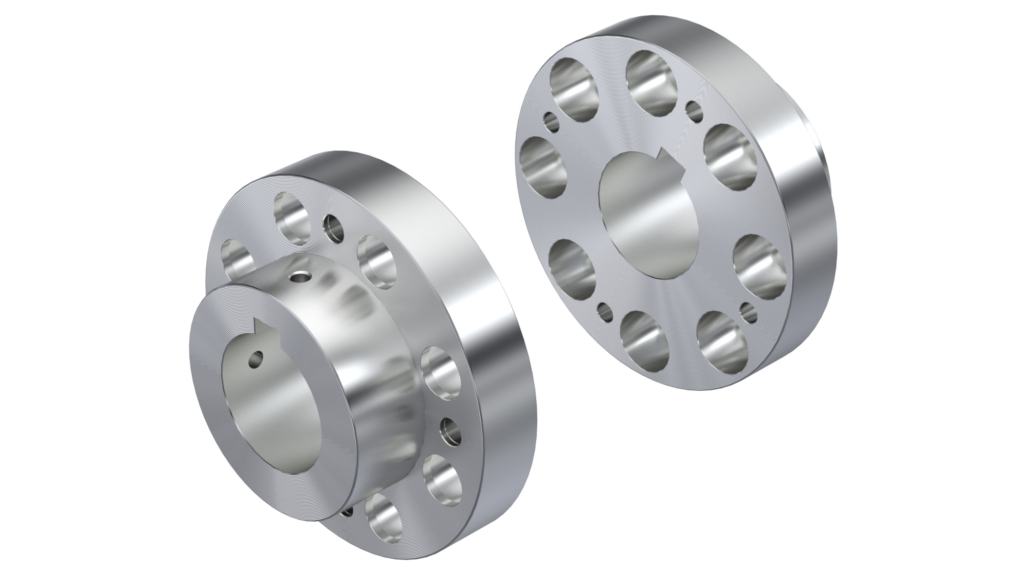

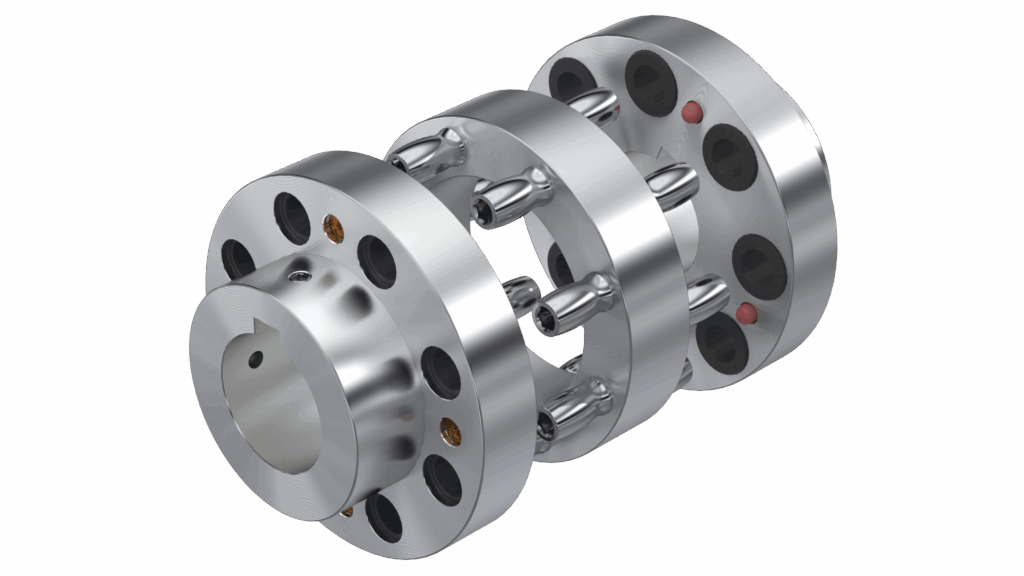

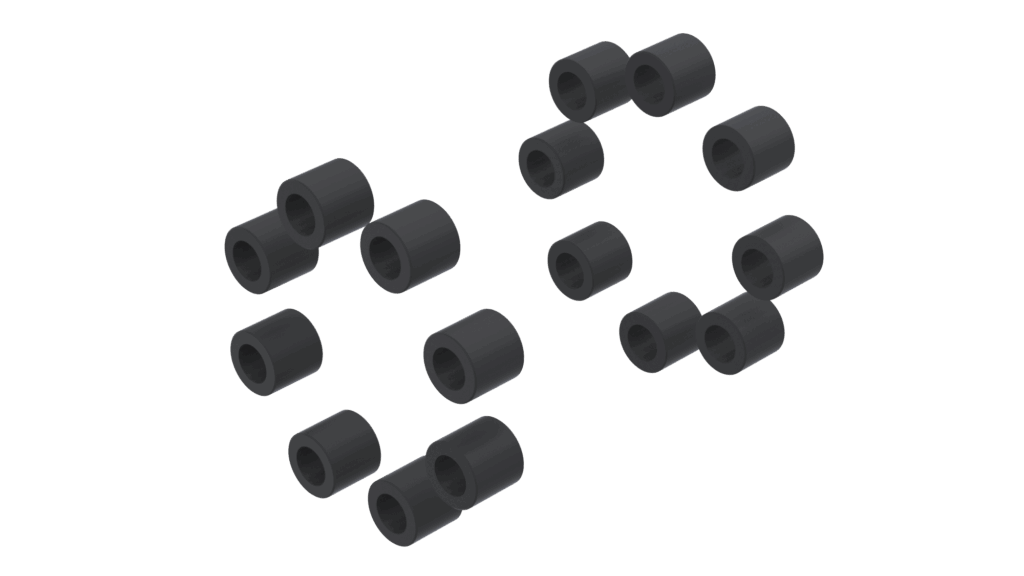

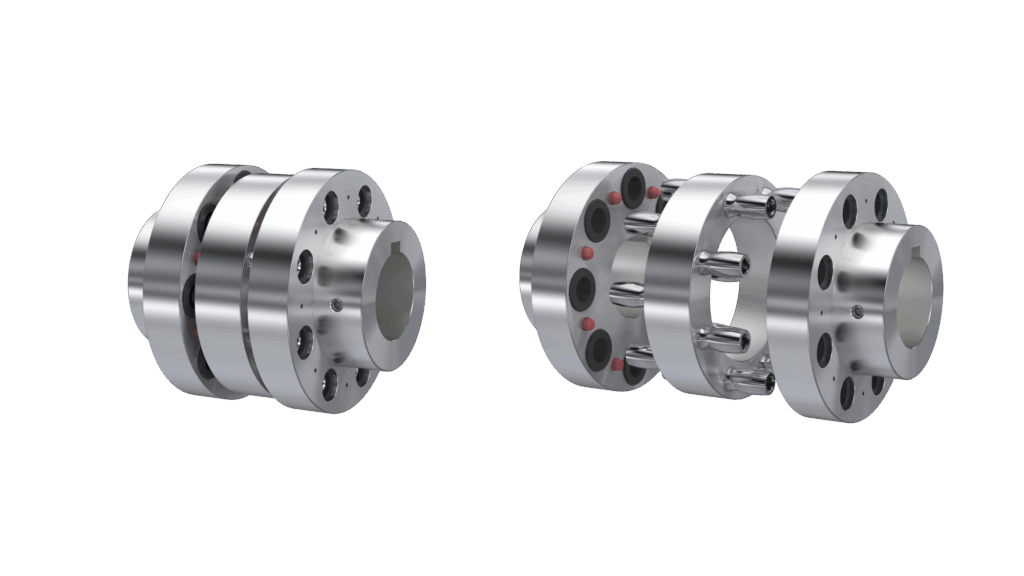

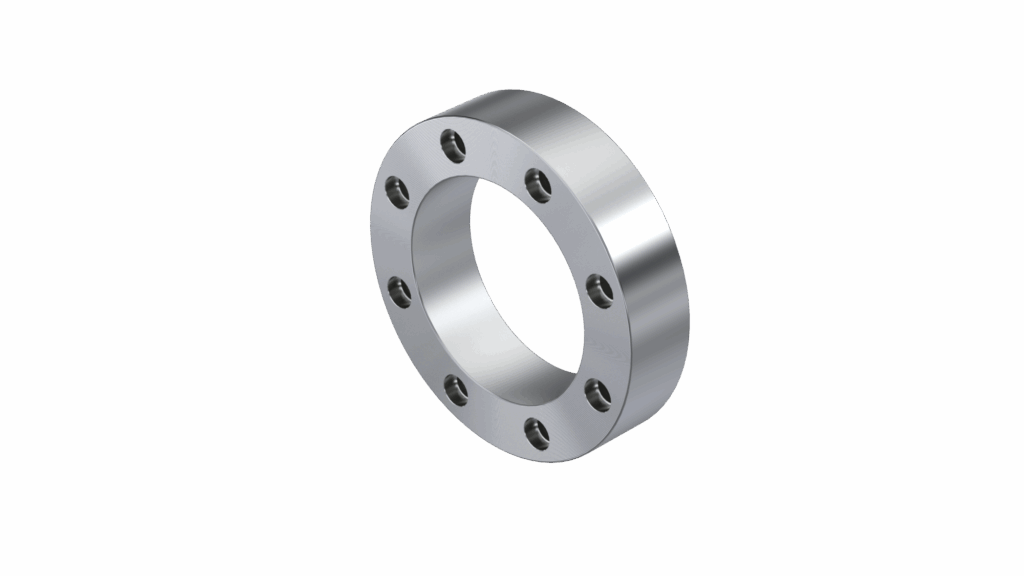

The Double Engagement Model consists of two Hubs with Bushings and a free-floating Drive Ring with Pins on each side. This arrangement can accommodate Parallel, Axial and Angular Misalignment.

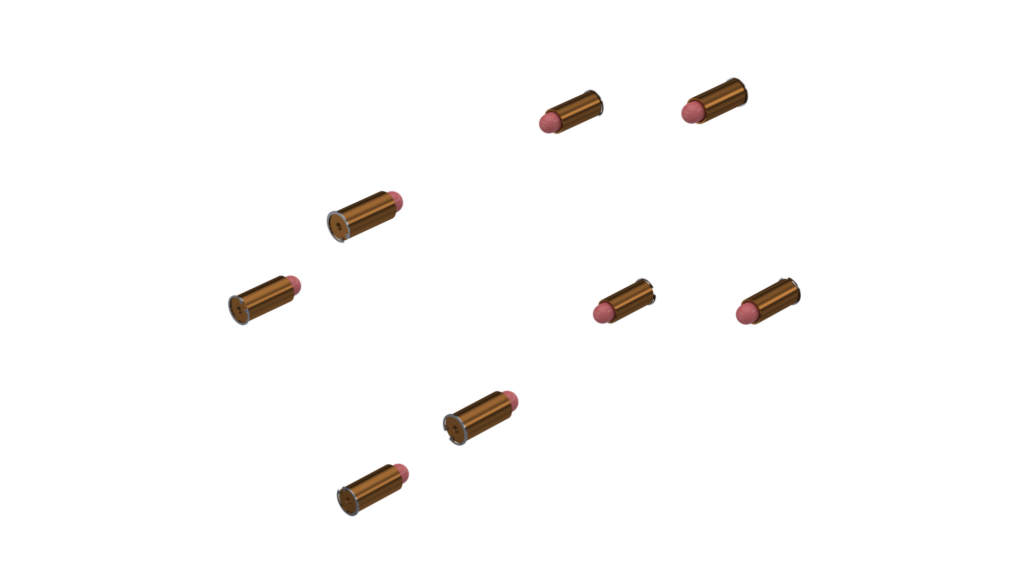

Request a QuoteComponents of DE Model
Available Options
Select One to See Detailed Specifications
| Series | Coupling Size | D1 | D2 | L1 | L2 | L3 | GAP | OAL | MAX BORE |
| 1 | FC-1-200 | 6.00 | 3.625 | 1.63 | 0.94 | 1.25 | 0.250 | 5.00 | 1.50 |
| 1 | FC-1-300 | 7.00 | 4.595 | 2.19 | 0.94 | 1.25 | 0.250 | 6.13 | 2.50 |
| 1 | FC-1-400 | 8.00 | 5.595 | 2.75 | 0.94 | 1.25 | 0.250 | 7.25 | 3.50 |
| 1 | FC-1-500 | 11.00 | 8.595 | 3.00 | 0.94 | 1.25 | 0.250 | 7.75 | 5.00 |
| 2 | FC-2-400 | 10.00 | 6.95 | 4.00 | 1.25 | 1.63 | 0.375 | 10.38 | 4.00 |
| 2 | FC-2-500 | 11.00 | 7.95 | 4.25 | 1.25 | 1.63 | 0.375 | 10.88 | 5.00 |
| 2 | FC-2-600 | 12.00 | 8.95 | 4.50 | 1.25 | 1.63 | 0.375 | 11.38 | 6.00 |
| 2 | FC-2-700 | 14.00 | 10.95 | 5.00 | 1.25 | 1.63 | 0.375 | 12.38 | 7.00 |
| 3 | FC-3-600 | 15.00 | 10.775 | 5.50 | 1.88 | 2.00 | 0.563 | 14.13 | 6.00 |
| 3 | FC-3-700 | 16.00 | 11.775 | 6.38 | 1.88 | 2.00 | 0.563 | 15.88 | 7.00 |
| 3 | FC-3-800 | 18.00 | 13.775 | 7.25 | 1.88 | 2.00 | 0.563 | 17.63 | 8.00 |
| 3 | FC-3-900 | 20.00 | 15.775 | 8.50 | 1.88 | 2.00 | 0.563 | 20.13 | 9.00 |
| 3 | FC-3-1000 | 22.00 | 17.775 | 9.25 | 1.88 | 2.00 | 0.563 | 21.63 | 10.00 |
| 4 | FC-4-800 | 20.00 | 14.312 | 7.25 | 2.75 | 3.00 | 0.750 | 19.00 | 8.00 |
| 4 | FC-4-900 | 22.00 | 16.312 | 8.50 | 2.75 | 3.00 | 0.750 | 21.50 | 9.00 |
| 4 | FC-4-1000 | 24.00 | 18.312 | 9.25 | 2.75 | 3.00 | 0.750 | 23.00 | 10.00 |
| 4 | FC-4-1100 | 26.00 | 20.312 | 9.75 | 2.75 | 3.00 | 0.750 | 24.00 | 11.00 |
| 5 | FC-5-1100 | 24.00 | 17.312 | 9.75 | 3.25 | 3.25 | 0.875 | 24.50 | 11.00 |
| 5 | FC-5-1400 | 29.00 | 22.332 | 11.13 | 3.25 | 3.25 | 0.875 | 27.25 | 14.00 |
| 5 | FC-5-1600 | 32.00 | 25.5 | 12.25 | 3.25 | 3.25 | 0.875 | 29.50 | 16.00 |
COMMON APPLICATIONS
The Spacer Model is normally used when there is a need to bridge a gap between shaft ends or with End Suction Pumps to facilitate the removal of the “pull out” section without having to move the motor.
- All types of Fans
- All types of Jack Shafts
- Centrifugal Blowers
- Centrifugal Pumps
- Compressors
- Mixers
- Pulp Grinders
- Winders
- Generators
- Extruders
Model DE Ordering Example
For any questions related to sizing and models, please contact Frontline Industries, Inc.
| Ordering Example | FC | DE | – | 2 | 04 | ST | ST |
| Coupling Line | |||||||
| Model | |||||||
| Model Type | |||||||
| Series | |||||||
| Size | |||||||
| Bushing Type | |||||||
| Pin Type |
Notes
- Only Model SE (Single engagement) Coupling has hubs fitted for both Pins & Bushings. For all other model couplings. Hubs are fitted for Bushings Only.
- Model FDS (Floating Drive Shaft), Model VPT (Vacuum Pump Train) and Model FLW (Flywheel) are quoted and manufactured on a “per application” basis
- For tapered bore couplings please see diagram “xyz” and provide dimensions via phone, email or fax.
This Coupling Model has additional Order Examples
View Order Example Options Downloadable Resources
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi urna sapien magnis egestas ut vulputate enim. Eu volutpat laoreet in integer ipsum risus.
-
DE Installation Guide – Interference Fit
Coming Soon
-
DE Installation Guide – Clearance Fit
Coming Soon
Double Engagement Coupling
