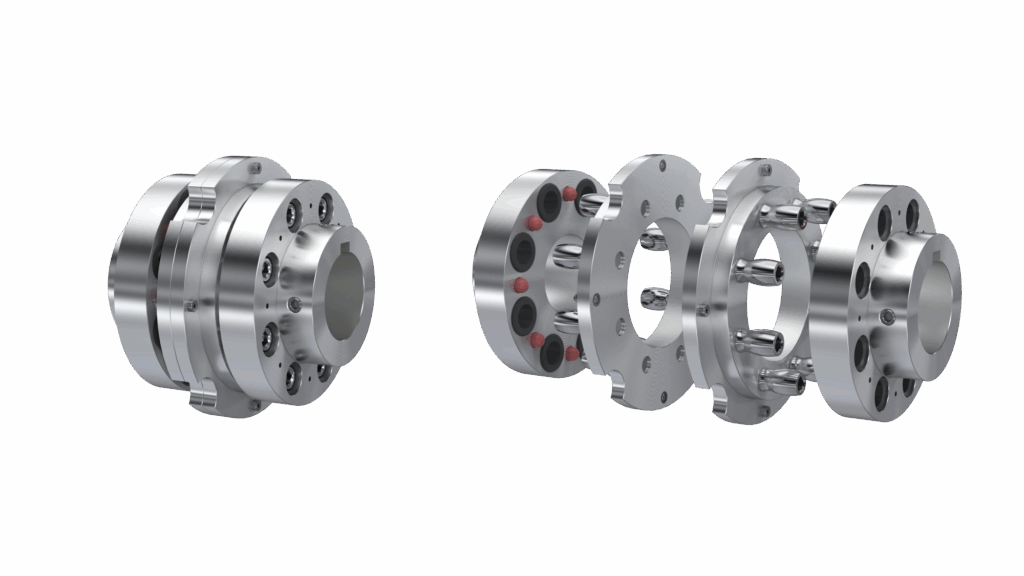

Model SHP

Shear Pin Coupling

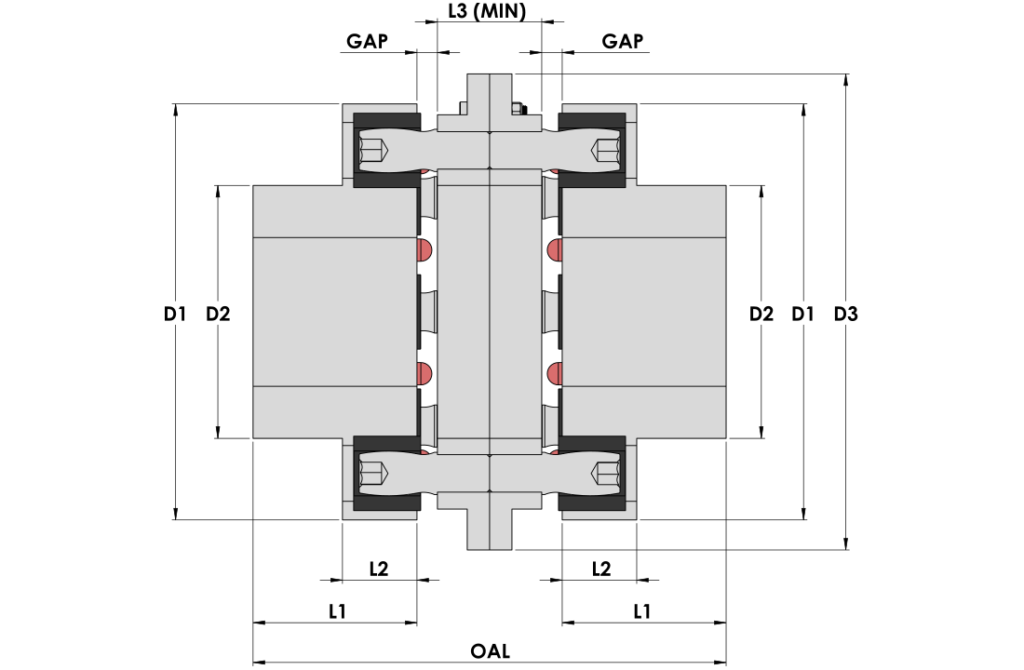

The Double Engagement Shear Pin Model consists of a drive ring made of two detachable sections held together by a predetermined size and number of Stainless Steel or Bronze Pins, designed to shear at a certain torque. This arrangement can accommodate Parallel, Axial and Angular Misalignment.

Request a Quote

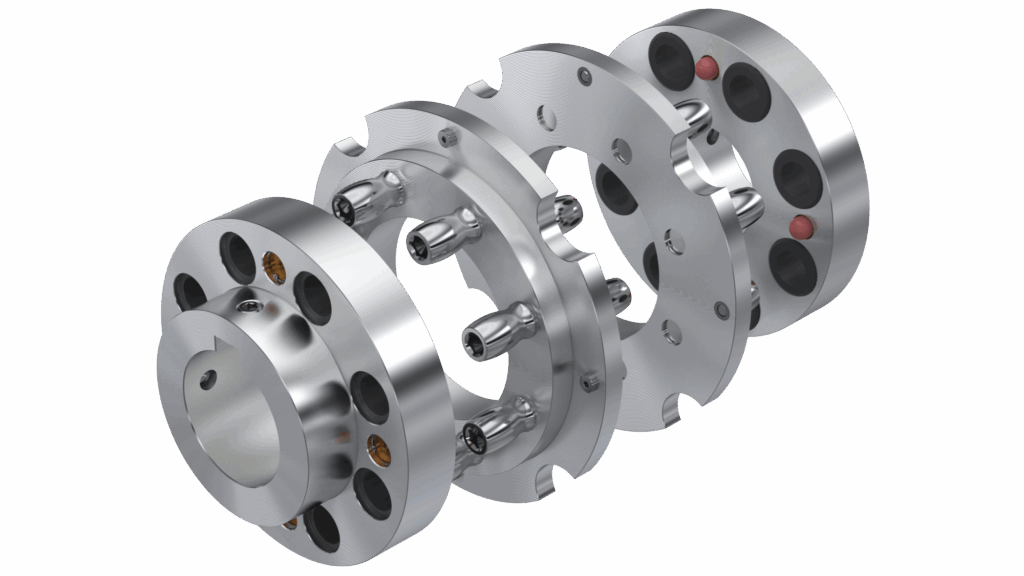

Components of SHP Model

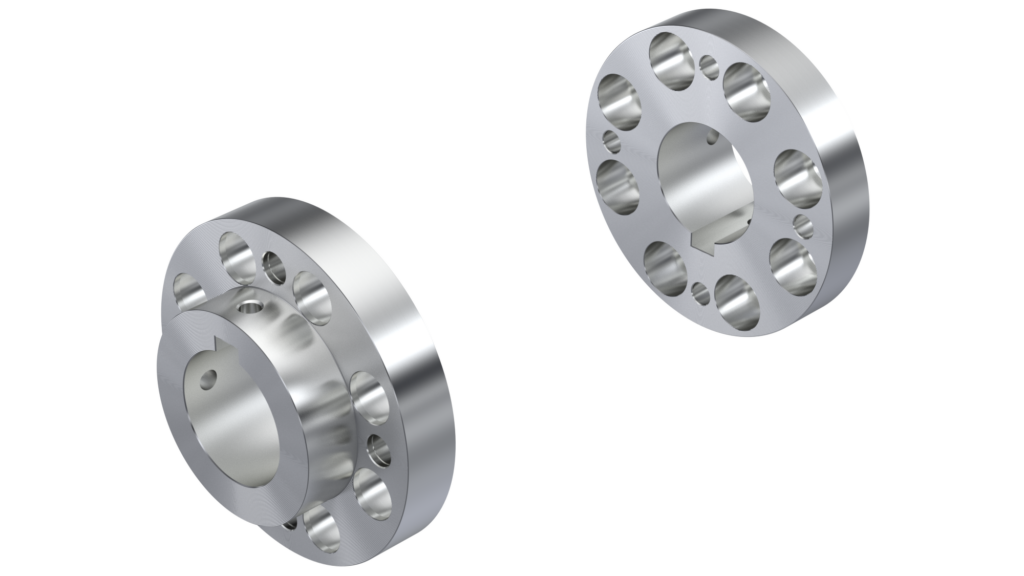

  1. HUBS

    304 SS

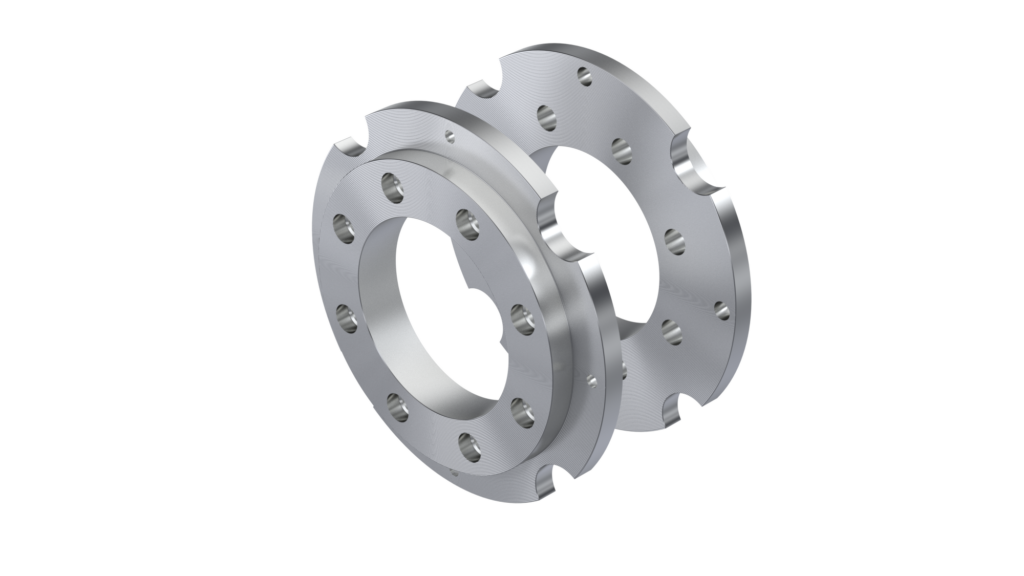

  2. SHEAR RING

    304 SS

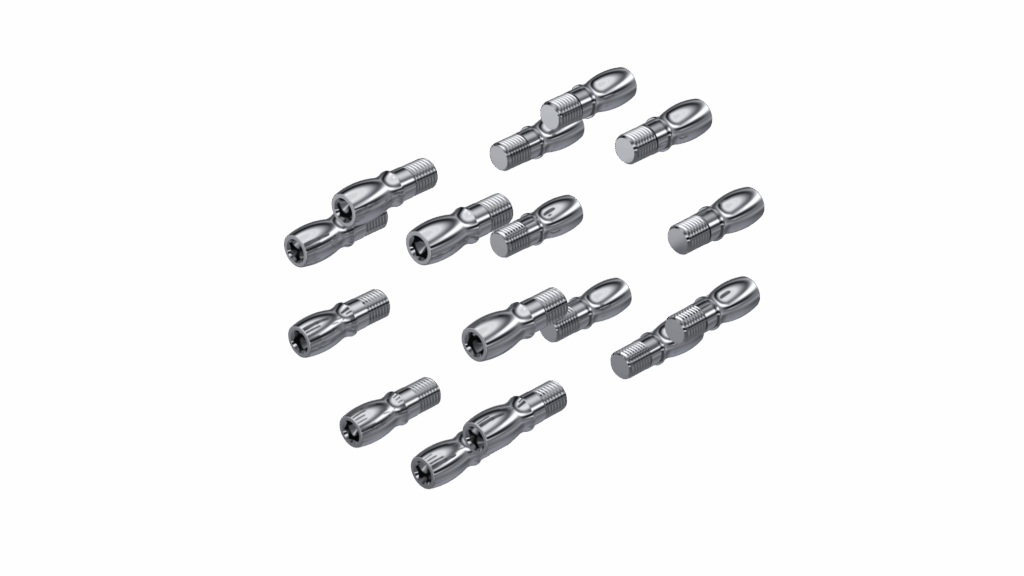

  3. PINS

    17-4 PH Hard Chrome

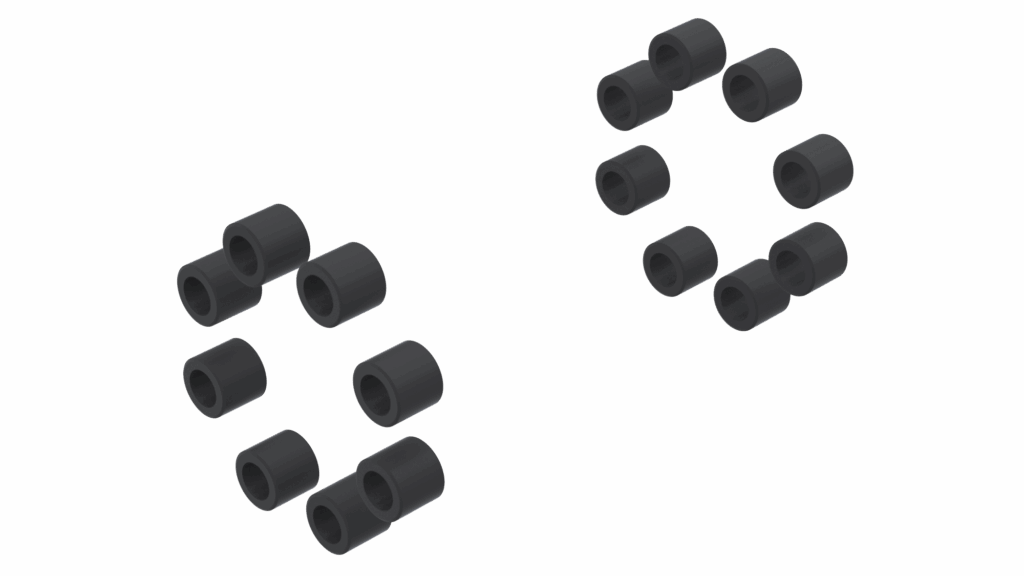

  4. BUSHINGS

    Rubber Coated

  5. CENTERING STOPS

    misc.

  6. SHEAR PIN

    Steel

  7. EXPANDER

    Steel & Teflon
Frontline Shear Pin Coupling (Model SHP) PINS 17-4 PH Hard Chrome
Frontline Shear Pin Coupling (Model SHP) BUSHINGS Rubber Coated
Frontline Shear Pin Coupling (Model SHP) SHEAR PIN Steel
Frontline Shear Pin Coupling (Model SHP) EXPANDER Steel & Teflon

Available Options

Select One to See Detailed Specifications

Series Coupling Size D1 D2 D3 L1 L2 L3 (MIN) GAP OAL (MIN) MAX BORE
1 FC-1-200 6.00 3.63 8.00 1.63 0.94 1.56 0.250 5.31 2.00
1 FC-1-300 7.00 4.60 9.00 2.19 0.94 1.56 0.250 6.44 3.00
1 FC-1-400 8.00 5.60 10.00 2.75 0.94 1.56 0.250 7.56 4.00
1 FC-1-500 11.00 8.60 13.00 3.00 0.94 1.56 0.250 8.06 5.00
2 FC-2-400 10.00 6.95 12.00 4.00 1.25 2.31 0.375 11.06 4.00
2 FC-2-500 11.00 7.95 13.00 4.25 1.25 2.31 0.375 11.56 5.00
2 FC-2-600 12.00 8.95 14.00 4.50 1.25 2.31 0.375 12.06 6.00
2 FC-2-700 14.00 10.95 16.00 5.00 1.25 2.31 0.375 13.06 7.00
3 FC-3-600 15.00 10.78 17.00 5.50 1.88 3.06 0.563 15.19 6.00
3 FC-3-700 16.00 11.78 18.00 6.38 1.88 3.06 0.563 16.94 7.00
3 FC-3-800 18.00 13.78 20.00 7.25 1.88 3.06 0.563 18.69 8.00
3 FC-3-900 20.00 15.78 22.00 8.50 1.88 3.06 0.563 21.19 9.00
3 FC-3-1000 22.00 17.78 24.00 9.25 1.88 3.06 0.563 22.69 10.00
4 FC-4-800 20.00 14.31 22.00 7.25 2.75 3.56 0.750 19.56 8.00
4 FC-4-900 22.00 16.31 24.00 8.50 2.75 3.56 0.750 22.06 9.00
4 FC-4-1000 24.00 18.31 26.00 9.25 2.75 3.56 0.750 23.56 10.00
4 FC-4-1100 26.00 20.31 28.00 9.75 2.75 3.56 0.750 24.56 11.00
5 FC-5-1100 24.00 17.31 26.00 9.75 3.25 4.06 0.875 25.31 11.00
5 FC-5-1400 29.00 22.33 31.00 11.13 3.25 4.06 0.875 28.06 14.00
5 FC-5-1600 32.00 25.50 34.00 12.25 3.25 4.06 0.875 30.31 16.00



Specify your own custom Couplings Request a Quote

Shear Pin – SeriesFL-A1

  • D2 2.1
  • D3 4.5
  • OAL 4.5
  • s1 1.750
  • s2 2.130
  • s3 4.5
  • s4 4.5
Contact Our Sales Request a Quote

COMMON APPLICATIONS

The Spacer Model is normally used when there is a need to bridge a gap between shaft ends or with End Suction Pumps to facilitate the removal of the “pull out” section without having to move the motor.

  • All types of Fans
  • All types of Jack Shafts
  • Centrifugal Blowers
  • Centrifugal Pumps
  • Compressors
  • Mixers
  • Pulp Grinders
  • Winders
  • Generators
  • Extruders

Model SHP Ordering Example

For any questions related to sizing and models, please contact Frontline Industries, Inc.

Ordering Example FC SH – 2 04 ST ST
Coupling Line
Model
Model Type
Series
Size
Bushing Type
Pin Type
Notes
  • Only Model SE (Single engagement) Coupling has hubs fitted for both Pins & Bushings. For all other model couplings. Hubs are fitted for Bushings Only.
  • Model FDS (Floating Drive Shaft), Model VPT (Vacuum Pump Train) and Model FLW (Flywheel) are quoted and manufactured on a “per application” basis
  • For tapered bore couplings please see diagram “xyz” and provide dimensions via phone, email or fax.
This Coupling Model has additional Order Examples
View Order Example Options

Component Options

Component Options
Item Description Type
Pin Standard ST
Limited end float LEF
Wire secured WS
Bushing Fiber reinforced polymer compound ST
Fit Option Clearance fit CF
Interference fit IF
Hub Types Hubs fitted for pins Pin
Hubs fitted for bushings Bush
1/4
Bushing A nibh dui id lobortis in id dignissim. Sit facilisis blandit.
2/4
Standard Pin Precision machined barrel shaped pins transmit torque through the coupling and increase misalignment tolerance.
3/4
Wire Secured Pin Wire Secured Pins ensure that if a pin were to disengage due to vibration, it would not potentially harm any equipment or personnel.
4/4
Limited End Float Pin The Limited End Float Pins are used to control the amount of axial float allowed by Electric Motors with sleeve bearings.

Downloadable Resources

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi urna sapien magnis egestas ut vulputate enim. Eu volutpat laoreet in integer ipsum risus.

See All Resources

Advantages

HIGH MISALIGNMENT TOLERANCE

Angular, Axial and Parallel misalignment can be accommodated without transmitting lateral reactionary forces to the equipment.

FAIL-SAFE DESIGN

The Frontline Coupling will never cause a forced outage.

NO LUBRICATION REQUIRED

The only maintenance is sporadic replacement of Pins & Bushings.

EASY TO MAINTAIN

Pins & Bushings can be replaced in a fraction of the time required to maintain a Grid, Gear or Disc Coupling.

Shear Pin Coupling

Need consultation in selecting the right couplings?

Contact us for guidance on selecting the best suited Model and Size Coupling for your particular application.
