Model SP-C

Spacer C

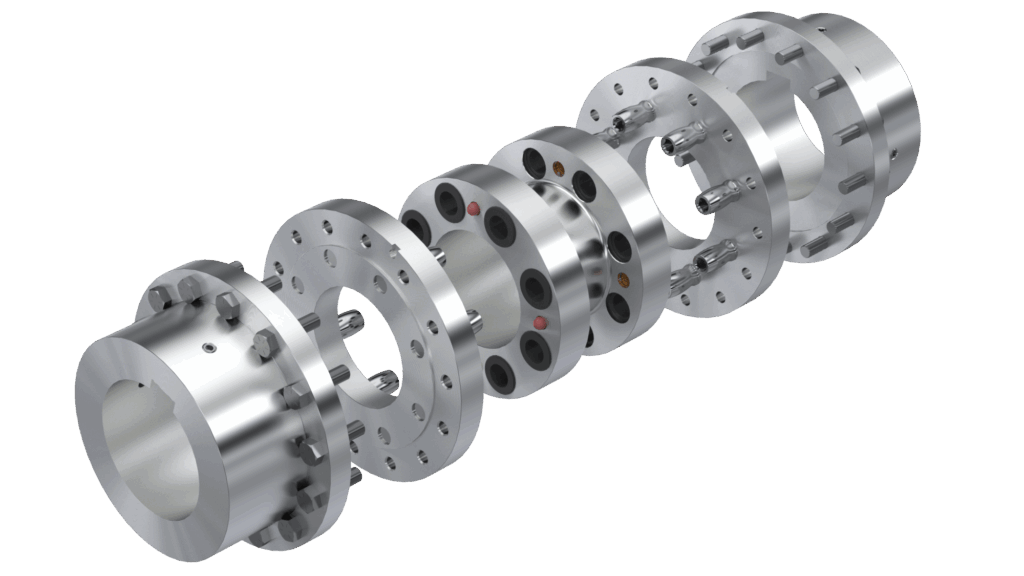

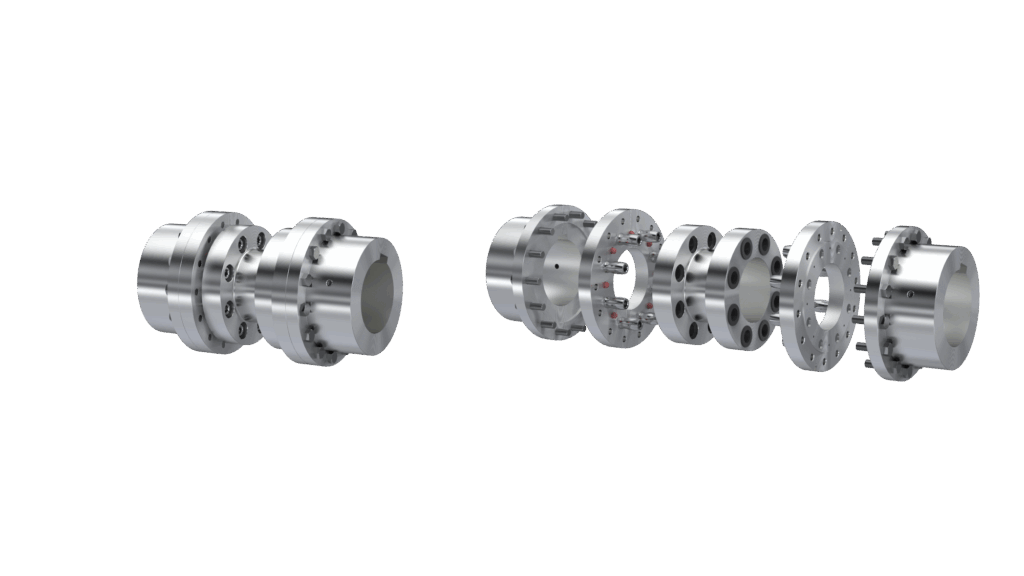

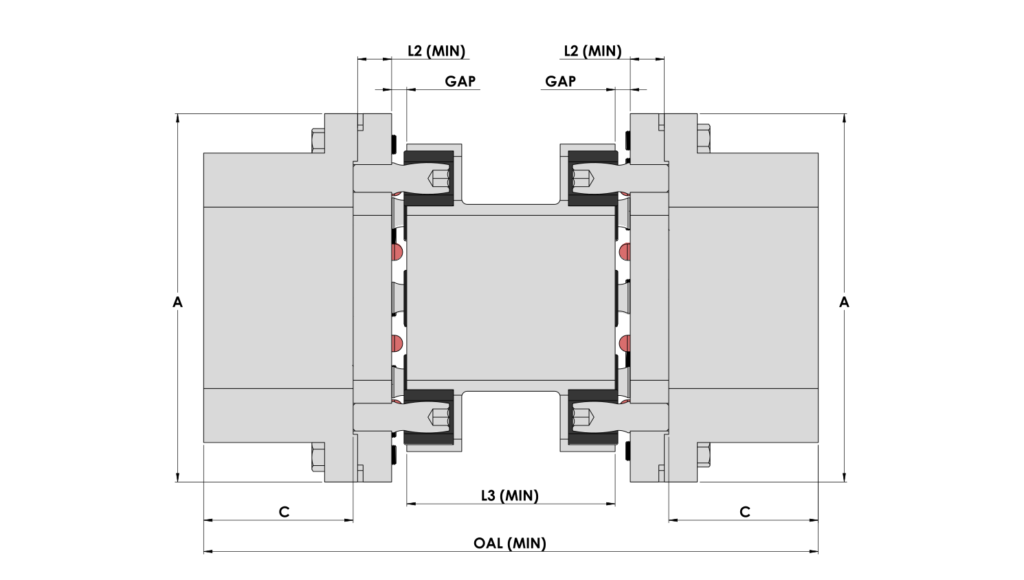

The Spacer Model “C” consists of a Cylindrical Spacer with Bushings on each side engaging with Pin Adapters that bolt on to Rigid Hubs. This allows for quick retrofitting of a Gear, Grid or Disc Coupling to the Frontline Pin & Bush design using the existing Rigid Hubs. This arrangement can accommodate Parallel, Axial and Angular Misalignment.

Request a Quote
Components of SP-C Model

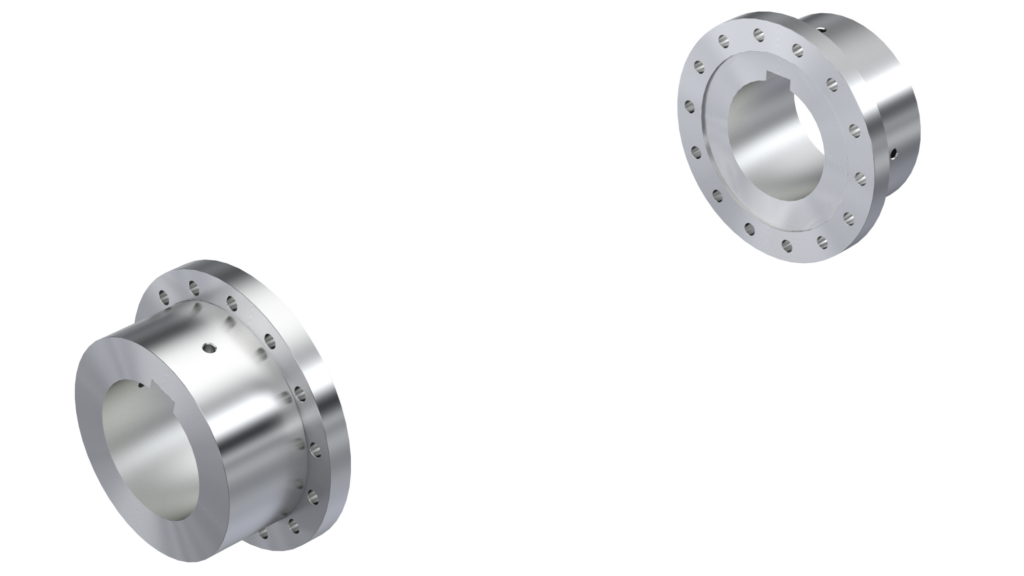

  1. HUBS

    304 SS

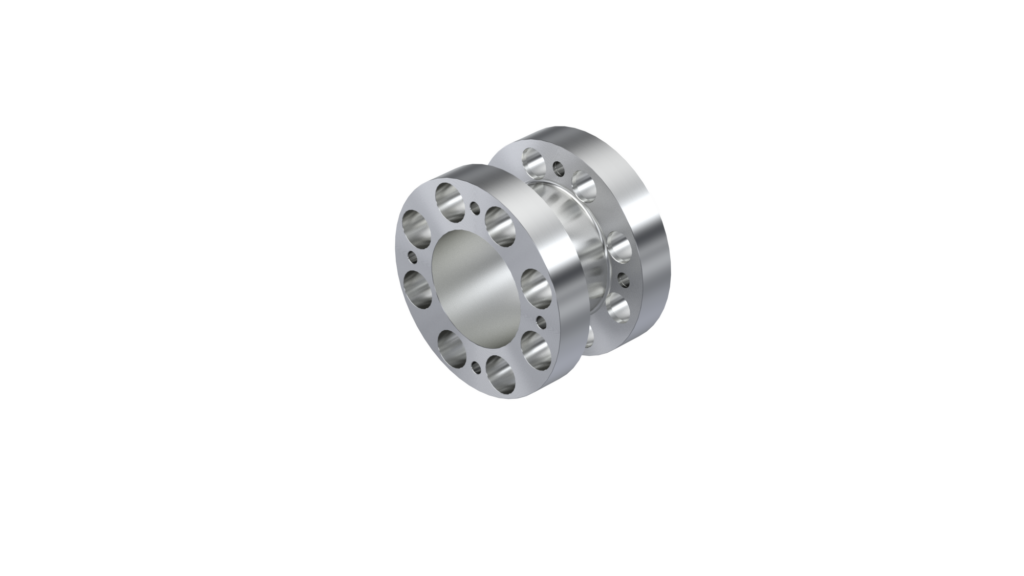

  2. SPACER

    304 SS

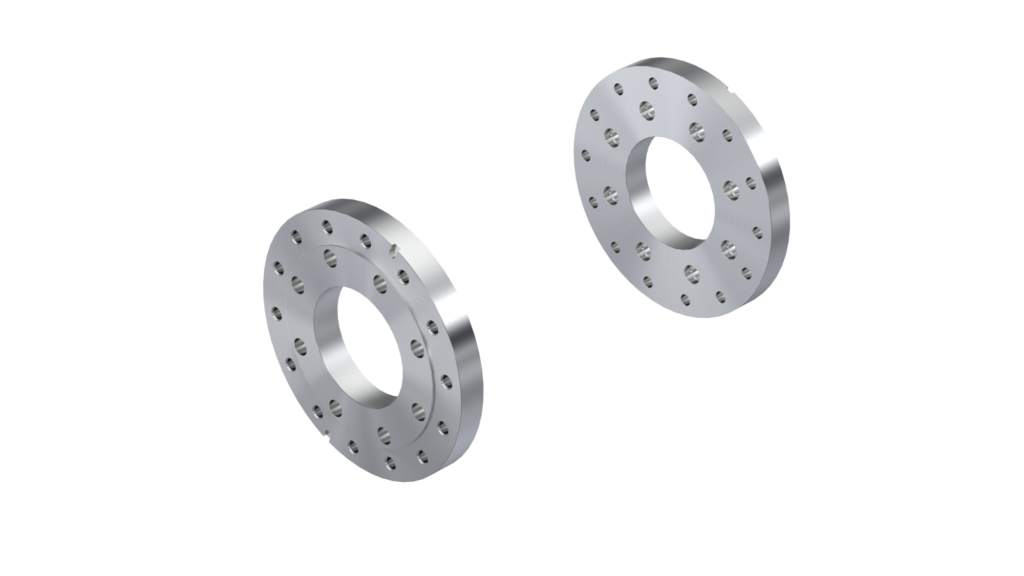

  3. ADAPTER

    304 SS

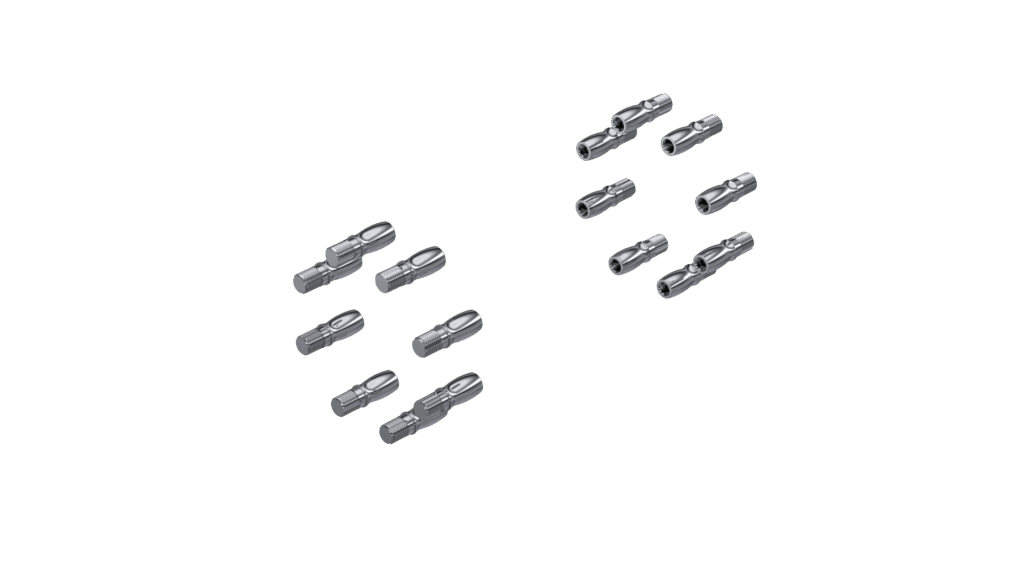

  4. PINS

    17-4 PH Hard Chrome

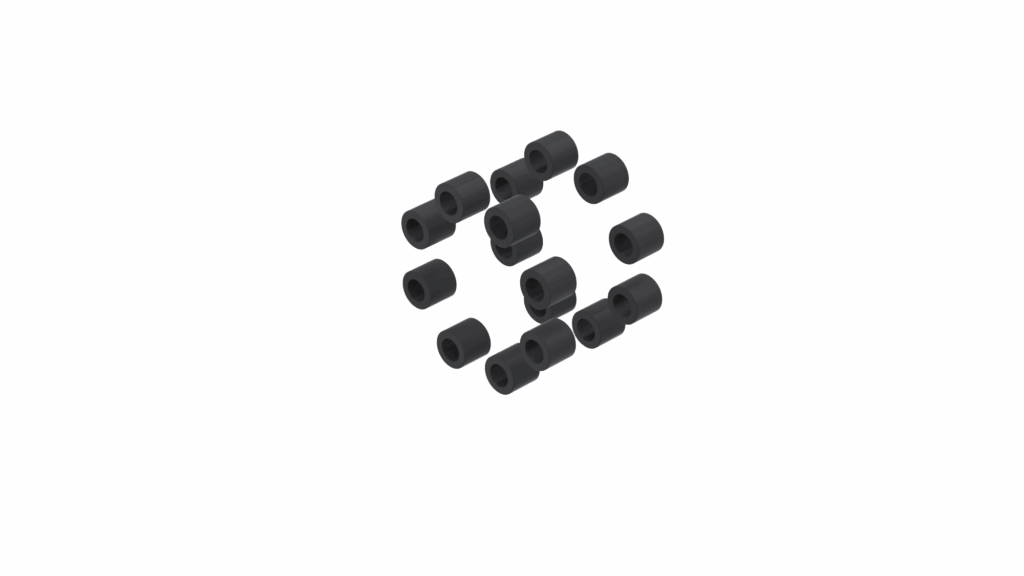

  5. BUSHINGS

    Rubber Coated

  6. CENTERING STOPS

    misc.

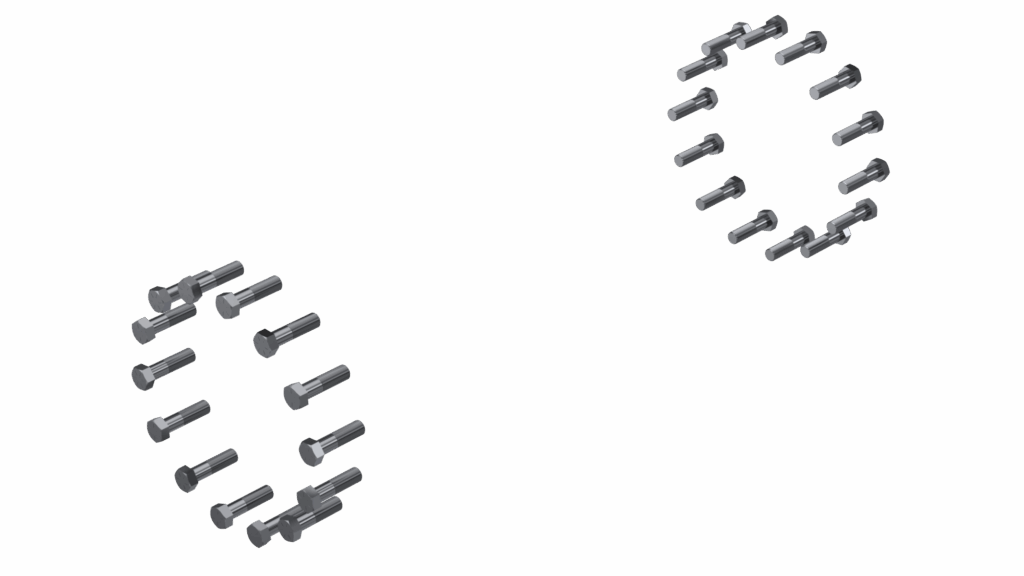

  7. HARDWARE

    misc.
Frontline Spacer Type C Coupling (Model SP-D) PINS 17-4 PH Hard Chrome
Frontline Spacer Type C Coupling (Model SP-D) BUSHINGS Rubber Coated
Frontline Spacer Type C Coupling (Model SP-D) HARDWARE

Available Options

Select One to See Detailed Specifications

Series RIGID HUB SIZE A (REF) C (REF) L2 (MIN) L3 (MIN) GAP OAL (MIN)
2 2-1/2 8.38 3.00 1.13 5.38 0.375 14.38
2 3 9.44 3.50 1.13 5.38 0.375 15.38
2 3-1/2 11.00 4.13 1.13 5.38 0.375 16.63
3 4 12.50 4.63 1.50 7.63 0.563 21.00
3 4-1/2 13.63 5.25 1.50 7.63 0.563 22.25
3 5 15.31 5.88 1.50 7.63 0.563 23.50
4 5-1/2 16.75 6.50 1.75 10.63 0.750 28.63
4 6 18.00 7.38 1.75 10.63 0.750 30.38
4 7 20.75 8.63 1.75 10.63 0.750 32.88



Specify your own custom Couplings Request a Quote

Spacer Type C – SeriesFL-A1

  • D2 2.1
  • D3 4.5
  • OAL 4.5
  • s1 1.750
  • s2 2.130
  • s3 4.5
  • s4 4.5
Contact Our Sales Request a Quote

COMMON APPLICATIONS

The Spacer Model is normally used when there is a need to bridge a gap between shaft ends or with End Suction Pumps to facilitate the removal of the “pull out” section without having to move the motor.

  • All types of Fans
  • All types of Jack Shafts
  • Centrifugal Blowers
  • Centrifugal Pumps
  • Compressors
  • Mixers
  • Pulp Grinders
  • Winders
  • Generators
  • Extruders

Model SP-C Ordering Example

For any questions related to sizing and models, please contact Frontline Industries, Inc.

Ordering Example FC SP C 2 04 ST ST
Coupling Line
Model
Model Type
Series
Size
Bushing Type
Pin Type
Notes
  • Only Model SE (Single engagement) Coupling has hubs fitted for both Pins & Bushings. For all other model couplings. Hubs are fitted for Bushings Only.
  • Model FDS (Floating Drive Shaft), Model VPT (Vacuum Pump Train) and Model FLW (Flywheel) are quoted and manufactured on a “per application” basis
  • For tapered bore couplings please see diagram “xyz” and provide dimensions via phone, email or fax.
This Coupling Model has additional Order Examples
View Order Example Options

Component Options

Component Options
Item Description Type
Pin Standart ST
Limited and float LEF
Wire secured WS
Bushing Standart rubber coated ST
Fit Option Clearance fit CF
Interference fit IF
Hub Types Hubs fitted for pins Pin
Hubs fitted for bushings Bush
1/4
Title 1 A nibh dui id lobortis in id dignissim. Sit facilisis blandit.
2/4
Title 2 A nibh dui id lobortis in id dignissim. Sit facilisis blandit.
3/4
Title 3 A nibh dui id lobortis in id dignissim. Sit facilisis blandit.
4/4
Title 4 A nibh dui id lobortis in id dignissim. Sit facilisis blandit.

Downloadable Resources

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi urna sapien magnis egestas ut vulputate enim. Eu volutpat laoreet in integer ipsum risus.

See All Resources

Advantages

HIGH MISALIGNMENT TOLERANCE

Angular, Axial and Parallel misalignment can be accommodated without transmitting lateral reactionary forces to the equipment.

FAIL-SAFE DESIGN

The Frontline Coupling will never cause a forced outage.

NO LUBRICATION REQUIRED

The only maintenance is sporadic replacement of Pins & Bushings.

EASY TO MAINTAIN

Pins & Bushings can be replaced in a fraction of the time required to maintain a Grid, Gear or Disc Coupling.

Spacer Type C Coupling

Need consultation in selecting the right couplings?

Contact us for guidance on selecting the best suited Model and Size Coupling for your particular application.
