Bushing

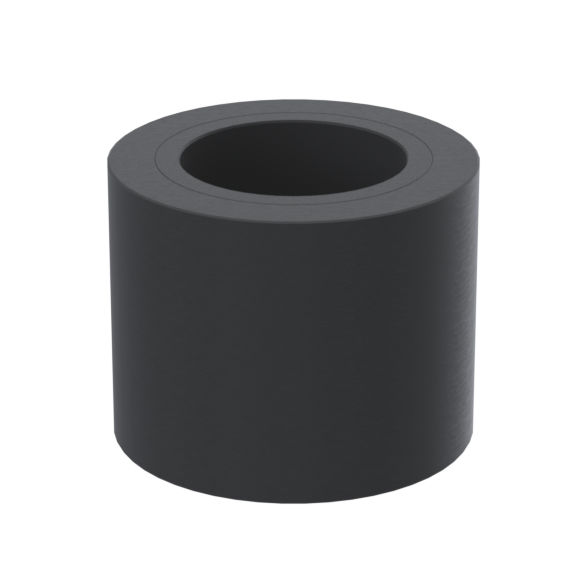

The self-lubricated inside diameter of the bushing provides a very low coefficient of friction for the Pin to slide in and out of, while the Viton coating reduces torsional vibration and electrically isolates the coupling from stray current.
Request a QuoteComponents of the BUSHING
Available Options
Select One to See Detailed Specifications
| Series | D1 | L1 |
| FC-1 | 1.157 | 0.950 |
| FC-2 | 1.501 | 1.188 |
| FC-3 | 2.001 | 1.750 |
| FC-4 | 2.751 | 2.500 |
| FC-5 | 3.251 | 3.000 |
Model SE Ordering Example
