Our Products
Flexible Shaft Couplings
Designed for high torque, high misalignment applications, Frontline Couplings’ fail-safe design provides high reliability with no lubrication required.
Learn More
Drive Shafts
All the benefits of the patented Frontline Coupling design in variety of Drive Shaft configurations.
Learn More
Customization Options
Rapid engineering and implementation of various customization options.
Learn More

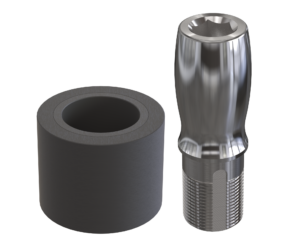

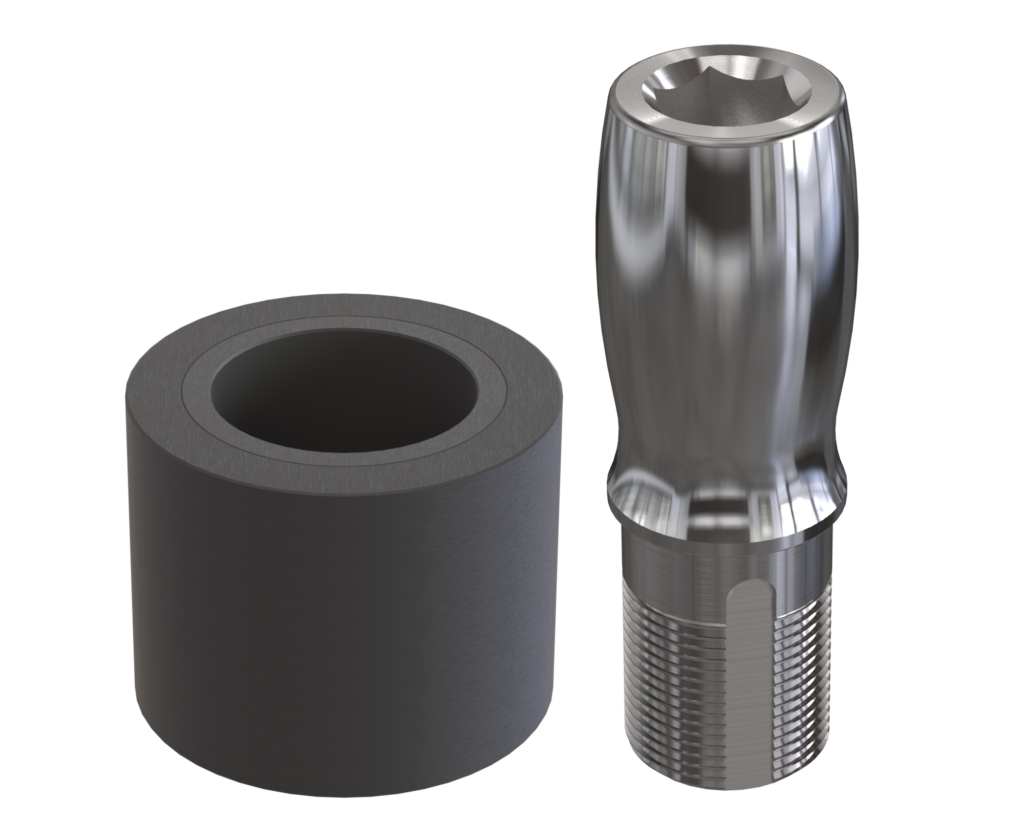

Tools & Spare Parts
Bushing Installation/Removal Tools and Spare Parts for all Frontline Couplings & Driveshafts.
Learn More
02
products

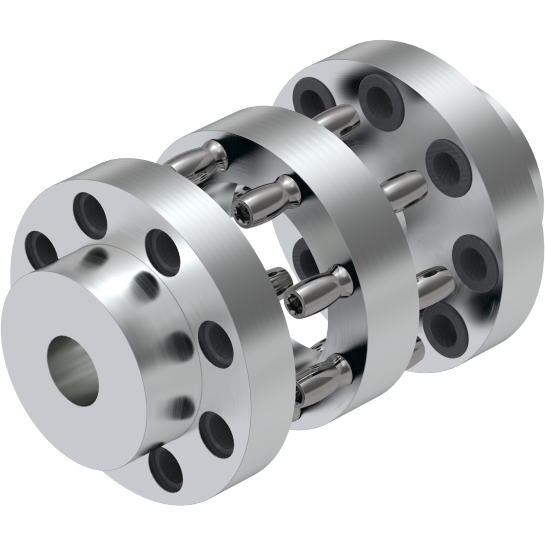

Advantages of Frontline Couplings
While the frequency of parts replacement depends on application and field conditions, most standard applications do not require any maintenance until after three years.
No Lubrication Required
01 The only maintenance on Frontline Couplings is the sporadic replacement of Pins & Bushings.
03
advantages
Advantages of Frontline Couplings
Frontline Couplings can accommodate a high degree of angular, axial and parallel misalignment while maintaining high torque and greatly reducing the damage caused by lateral reactionary forces.
High Misalignment Tolerance
02 Frontline Couplings can accommodate 5⁰ of angular misalignment per engagement.
03
advantages
Advantages of Frontline Couplings
Even if a Frontline Coupling is allowed to run until all the bushings are worn and there is metal-to-metal contact, the Coupling will always maintain a positive engagement, allowing the equipment to operate until the next scheduled shutdown.
Fail-Safe Design
03 Frontline Couplings will never cause a forced outage.
03
advantages
Advantages of Frontline Couplings
Unlike most Grid, Gear and Disc Couplings, Frontline’s Pin & Bush design allows for rapid parts replacement in the field without disturbing shaft alignment.
Easy to Maintain
04 Spare parts can be quickly replaced without having to move the driver or driven equipment.
03
advantages
Advantages of Frontline Couplings
Low Inventory Cost
All sizes are organized by 8 “Series”, allowing customers to use the same size Pins & Bushings for multiple size couplings within that Series, decreasing inventory cost and simplifying storeroom management.
Easy to Inspect / Visual indication of relative wear
Users can quickly assess spare parts wear without having to move equipment or disturb alignment. Relative wear can be monitored during equipment operation with the use of a strobe light by marking a line axially across the hubs O.D. at time of installation.
Limited End Float Applications
Limited End Float Pins can be used to keep the rotor within the allowable float, preventing it from hitting the motor bearings’ thrust faces.
Made in USA
All design and manufacturing is done in the U.S.A.
03
advantages
Advantage of Frontline Couplings
Frontline Couplings incorporate a patented bushing design that provides several additional advantages.
Vibration Dampening
01
The rubber coated bushings provide shock & vibration dampening, leading to longer equipment life.
Electrically Isolated
02
The rubber coated bushings also prevent stray current from traveling across hubs and damaging bearings on the driven equipment.
Chemically Resistant
03
Chemically resistant to various PH levels.
03
advantages

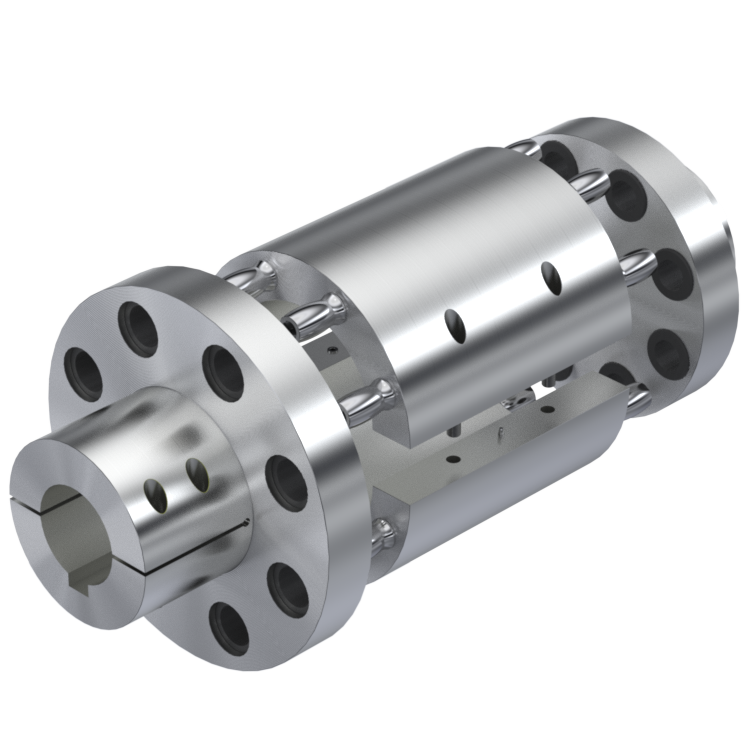

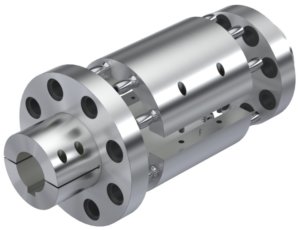

Rapid Delivery & Customization
Our large inventory of standard sizes and raw material allows us to make very fast deliveries in emergency situations. Because of our complete control of the design and manufacturing process, we can quickly accommodate custom installations.
NON-STANDARD LENGTH HUBS
To meet specific design requirements, non-standard length hubs can be provided.
NON-STANDARD DIAMETER HUBS
Custom diameter hubs can be designed and manufactured to fit the required coupling envelope.
PARTIALLY SPLIT HUBS
This option combines the ease of a clearance fit installation with the reliability of an interference fit – goes on like a clearance fit, stays on like a clearance fit.
SPLIT DROP-OUT SPACER
To accommodate applications where a solid spacer could not be taken out to service the coupling.
03
advantages
Service Snapshot
Frontline Couplings is committed to constant improvement of our service to provide our customers the best possible experience.
45
<24 hrs
5-7 business days
100%
04
In Numbers

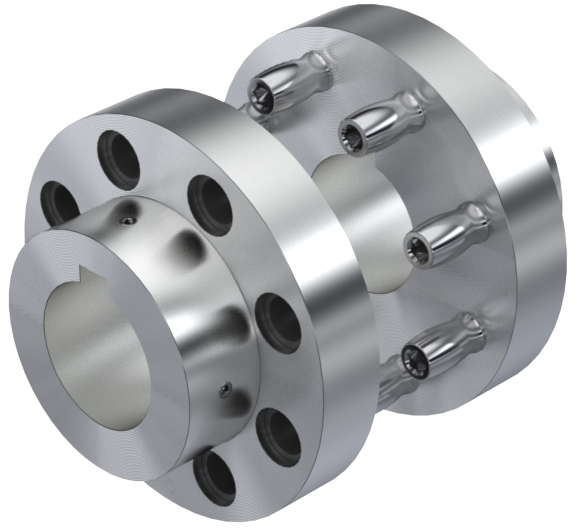

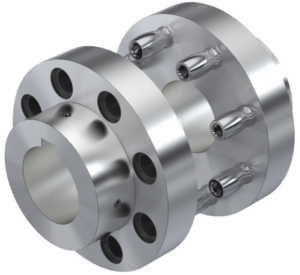

Model SE – Single Engagement
The Single Engagement Design is comprised of two hubs—one containing pins and one containing bushings. This arrangement can only accommodate Angular and Axial Misalignment.
Learn more

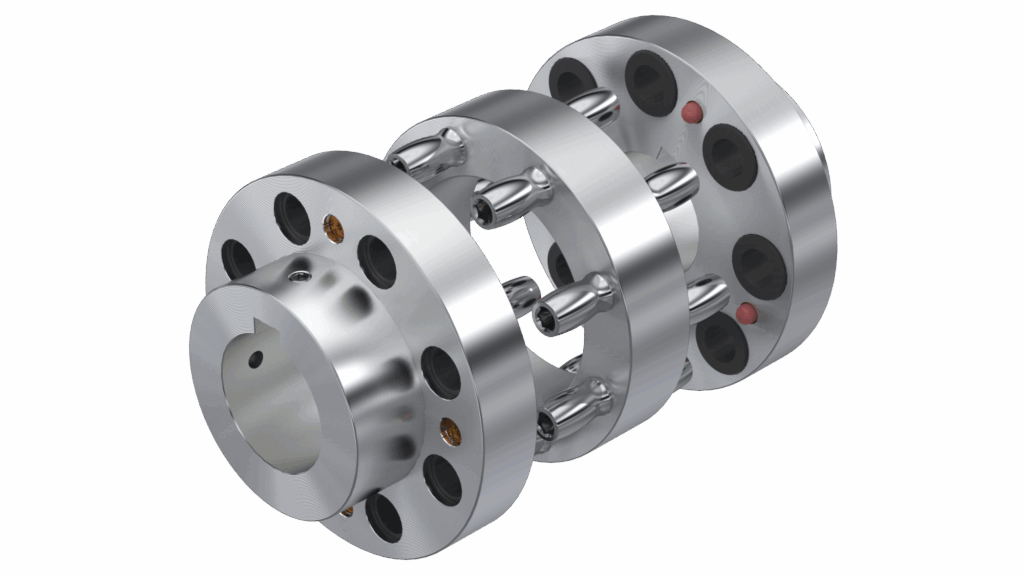

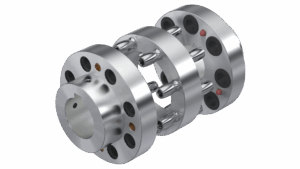

Model DE – Double Engagement
The Double Engagement Model consists of two Hubs with Bushings and a free-floating Drive Ring with Pins on each side. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

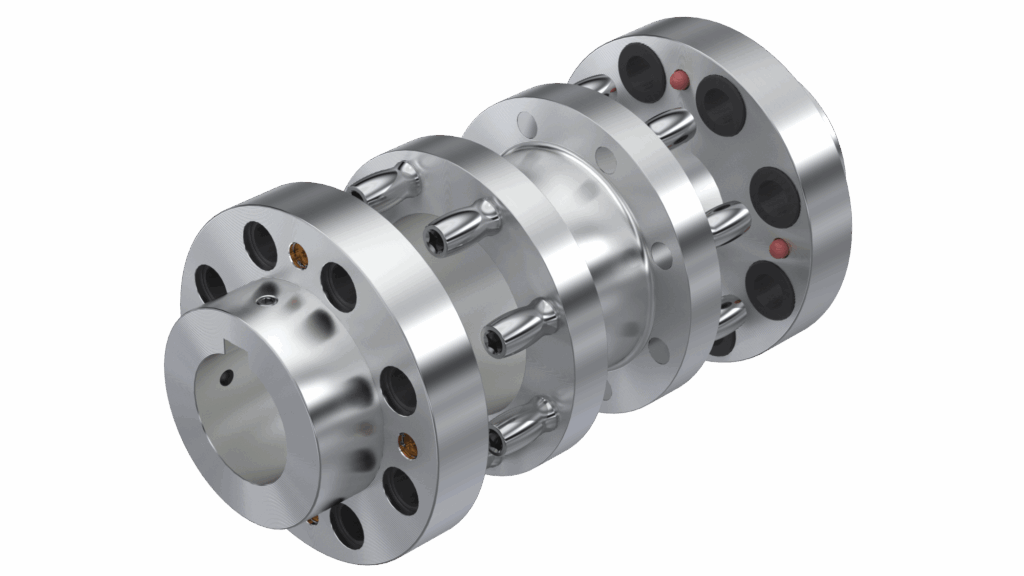

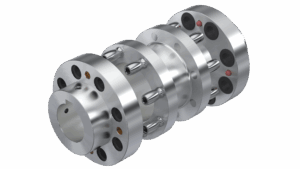

Model SP-A – Spacer Type A
The Spacer Model “A” consists of two Hubs with Bushings and a Spacer Cylinder with Pins on each side. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

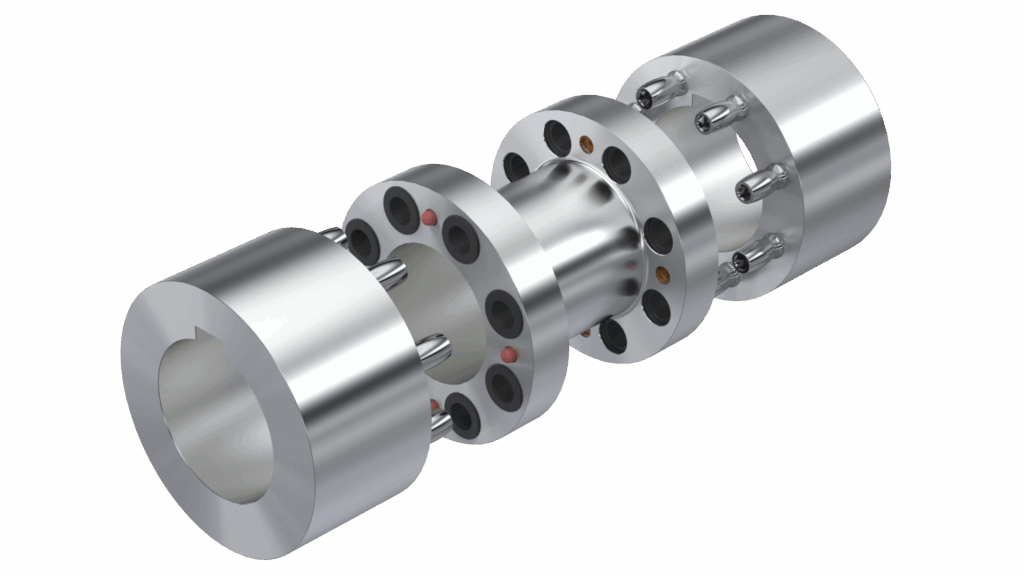

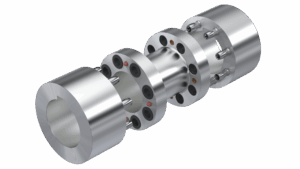

Model SP-B – Spacer Type B
The Spacer Model “B” consists of two Hubs with Pins that engage with a Cylindrical Spacer with Bushings on each side. This configuration allows for smaller diameter hubs reducing the weight of the coupling assembly and can accommodate Parallel, Axial and Angular Misalignment.
Learn more

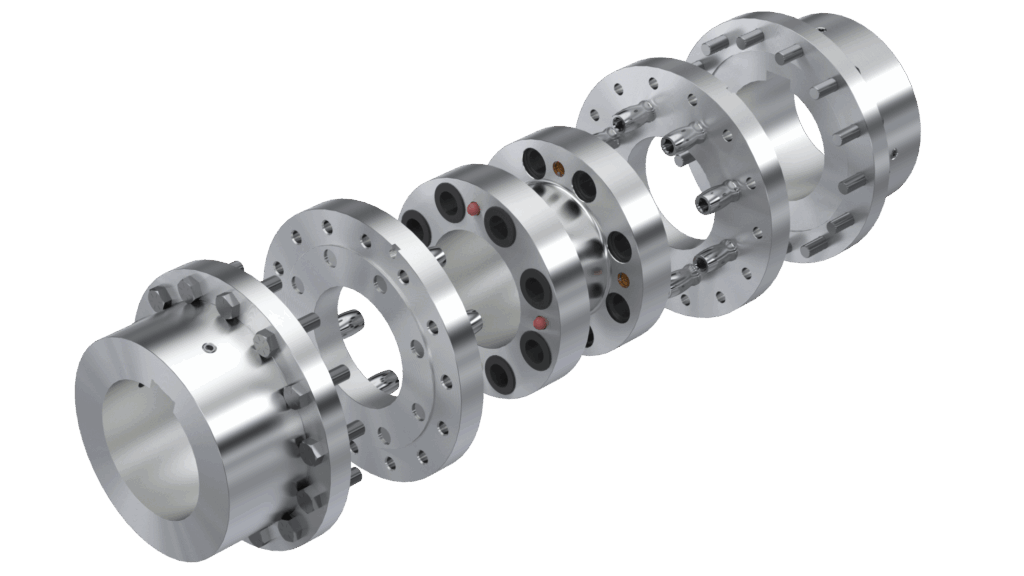

Model SP-C – Spacer Type C
The Spacer Model “C” consists of a Cylindrical Spacer with Bushings on each side engaging with Pin Adapters that bolt on to Rigid Hubs. This allows for quick retrofitting of a Gear, Grid or Disc Coupling to the Frontline Pin & Bush design using the existing Rigid Hubs. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

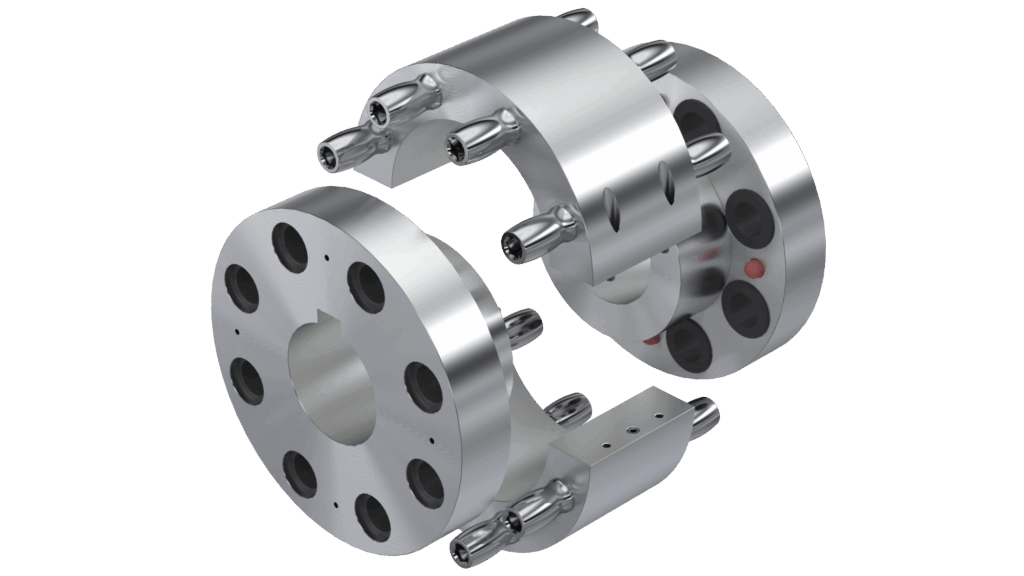

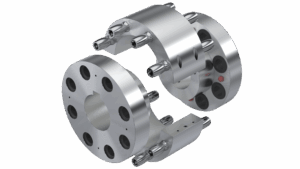

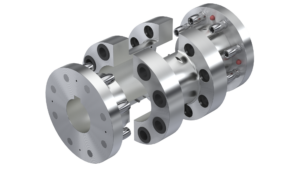

Model SD-SP-INV-A – Split Drop-Out Spacer A with Inverted Hubs
This configuration of hubs carrying bushings and a split spacer with pins allows for pin removal/installation through the inverted hubs. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

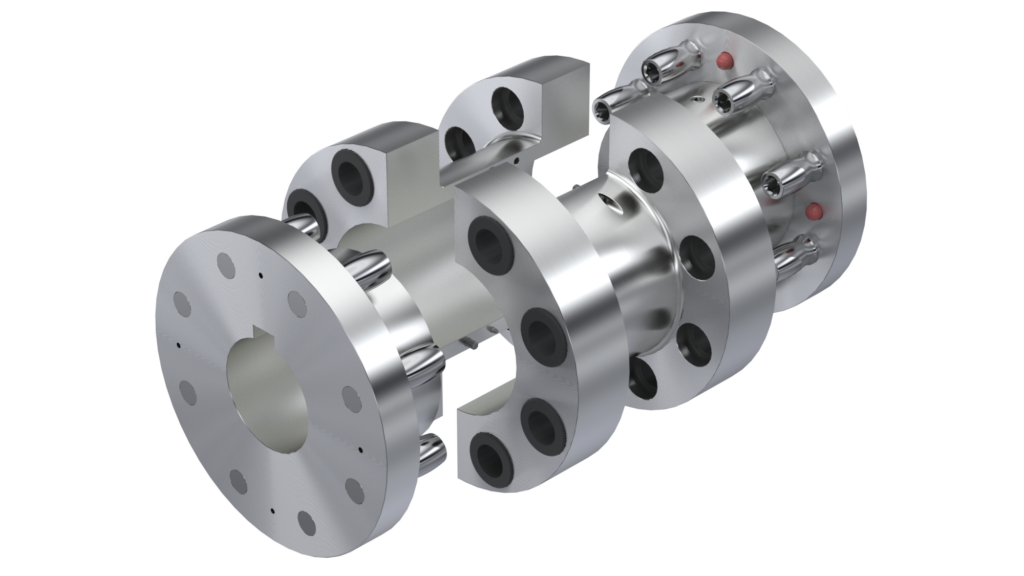

SD-SP-INV-B – Split Drop-Out Spacer B with Inverted Hubs
This configuration of hubs carrying pins and a split spacer with bushings, used when there is minimal clearance between the coupling and the driver/driven equipment, allows for pin removal/installation through the split spacer. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

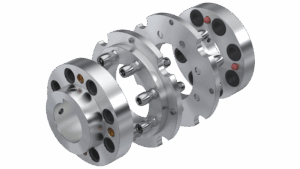

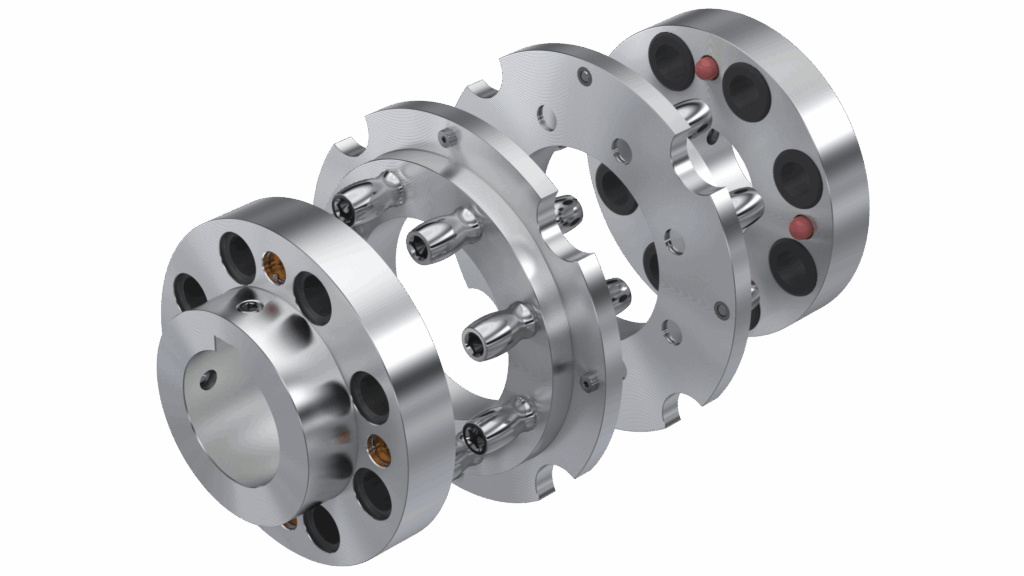

Model SHP – Shear Pin
The Double Engagement Shear Pin Model consists of a drive ring made of two detachable sections held together by a predetermined size and number of Stainless Steel or Bronze Pins, designed to shear at a certain torque. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

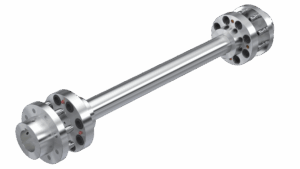

Model FDS-A – Floating Drive Shaft Type A
The Floating Drive Shaft Model “A” consists of two Single Engagement Couplings placed one on each end of a tubular Drive Shaft. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

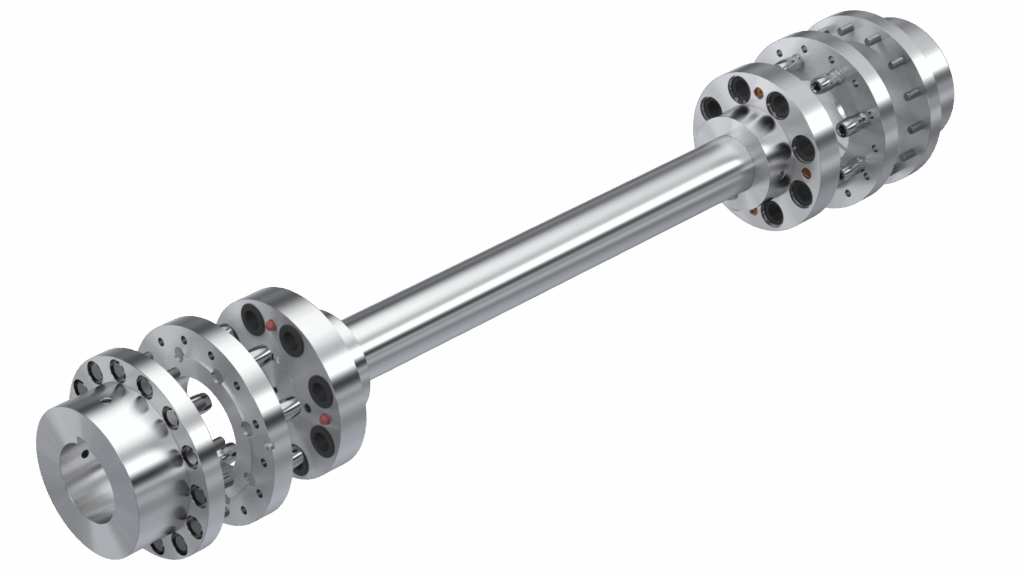

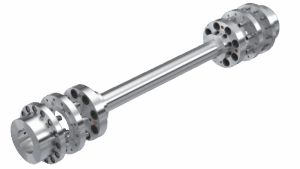

Model FDS-B – Floating Drive Shaft Type B
The Floating Drive Shaft Model “B” consists of a tubular Drive shaft with Bushing Hubs on each end engaging with Pin Adapters that bolt on to Rigid Hubs. This allows for quick retrofitting of a Gear, Grid or Disc Coupling to the Frontline Pin & Bush design using the existing Rigid Hubs. This arrangement can accommodate Parallel, Axial and Angular Misalignment.
Learn more

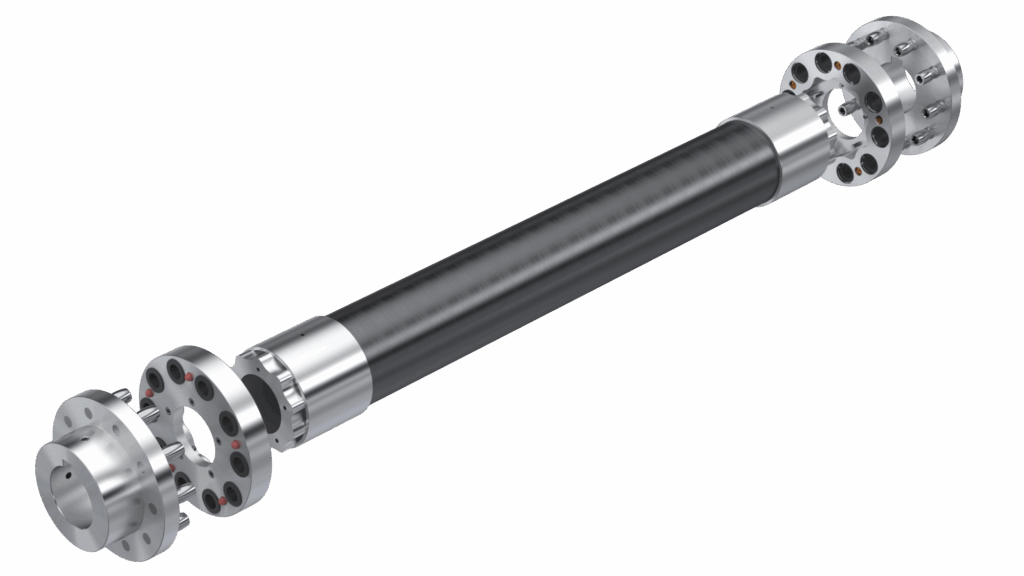

Model CFA – Carbon Fiber Drive Shaft Type A
The Carbon Fiber Drive Shaft Type A consists of all Frontline Coupling components including hubs that bolt onto the carbon fiber tube. This allows for damaged hubs to be quickly replaced in the field.
Learn more

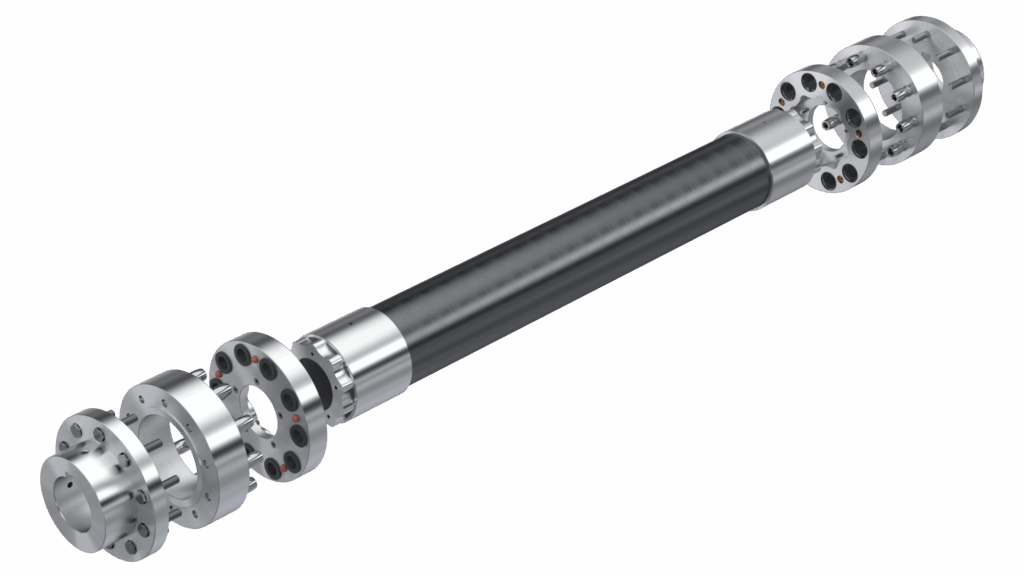

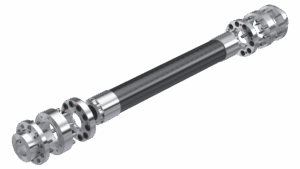

Model CFB – Carbon Fiber Drive Shaft Type B
The Carbon Fiber Drive Shaft Type B utilizes Frontline Pin Adapters that bolt onto existing Rigid Hubs including hubs that bolt onto the carbon fiber tube. This allows for damaged hubs to be quickly replaced in the field.
Learn more

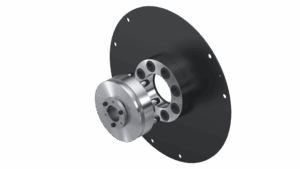

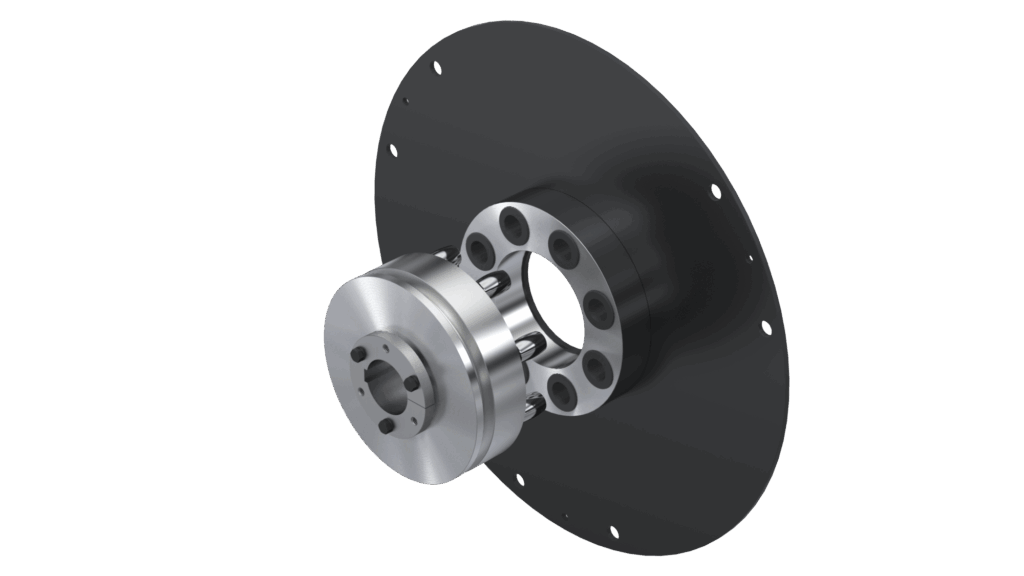

Model FLW – Flywheel
The Flywheel Model consists of a ring with bushings fitted onto a flywheel and a hub with pins fastened to the driven shaft. This arrangement can accommodate Angular and Axial Misalignment.
Learn more
Model SE – Single Engagement
Feature
Model DE – Double Engagement
Feature
Model SP-A – Spacer Type A
Feature
Model SP-B – Spacer Type B
Feature
Model SP-C – Spacer Type C
Feature
Model SD-SP-INV-A – Split Drop-Out Spacer A with Inverted Hubs
Feature
SD-SP-INV-B – Split Drop-Out Spacer B with Inverted Hubs
Feature
Model SHP – Shear Pin
Feature
Model FDS-A – Floating Drive Shaft Type A
Feature
Model FDS-B – Floating Drive Shaft Type B
Feature
Model CFA – Carbon Fiber Drive Shaft Type A
Feature
Model CFB – Carbon Fiber Drive Shaft Type B
Feature
Model FLW – Flywheel
FeatureLooking for older products
Frontline Industries, Inc. still supports the “FL” Series of Couplings and Parts. Click the button below for more information.
Old ProductsExplore all Couplings
Review our complete product line to find the right Coupling for your application.
Explore CouplingsLet’s Get in Touch
Contact us for a quick turnaround on a quote or to answer any questions you have.
